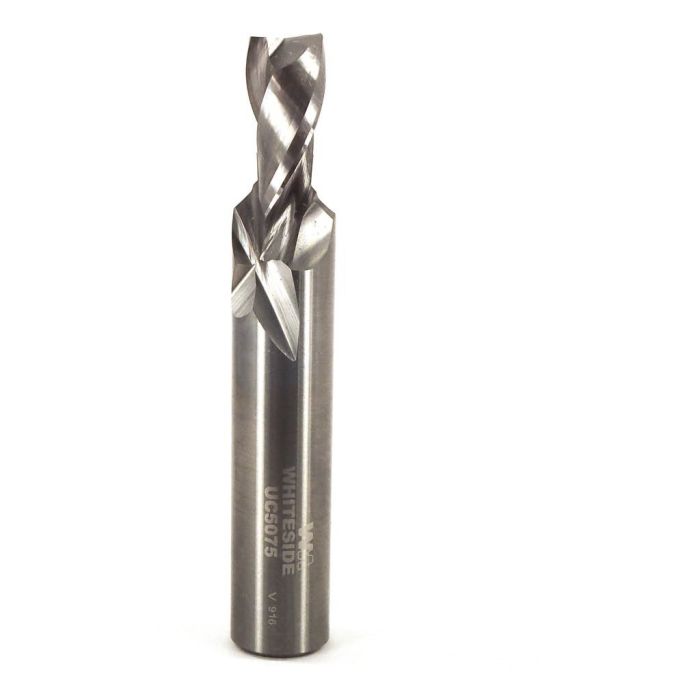

Whiteside UC5075 3/8" ULTIMATE COMPRESSION BIT

$86.50
In stock
SKU
WSUC5075
Whiteside UC5075 3/8" ULTIMATE COMPRESSION BIT

Whiteside UC5075 3/8" ULTIMATE COMPRESSION BIT
CNC Sheet Goods Up / Down Bits The “ULTIMATE" Carbide Compression Spiral Bit for CNC routing of sheet goods such as plywood and MDF. Conventional Compression Bits typically force the chips into the mid-section of the cut where the up-cut and down-cut flutes overlap. These chips can pack into the flutes which make the bit hard to push and causes it to run much hotter. This results in lower feed rates and shorter tool life. ADVANTAGES of the “ULTIMATE" Bit
Dedicated cut length to match the material thickness.
Up-cut flute extends into shank to improve chip evacuation.
Ultimate chip control allows the bit to cut more freely, run cooler, and last longer.
The down-shear flute cuts a 45° chamfer. Position the depth to barely shave the top edge of the material or lower the bit to cut up to a 1/16" chamfer.
3/8" cutting diameter bits are optimal for routing sheet goods. They remove less material with lower horsepower than 1/2" cutting diameter bits.
1/2" shank diameter provides the best rigidity and eliminates the need for odd sized collets.


Free shipping on all whiteside bits.

For the Whiteside section Whiteside Section Click here

More Information
Number of Flutes 2
Overall Length(L) 3"
Shank Diameter(d) 1/2"
Length of Cutting Edge(B) 3/4"
Cutting Edge Diameter(D) 3/8"
