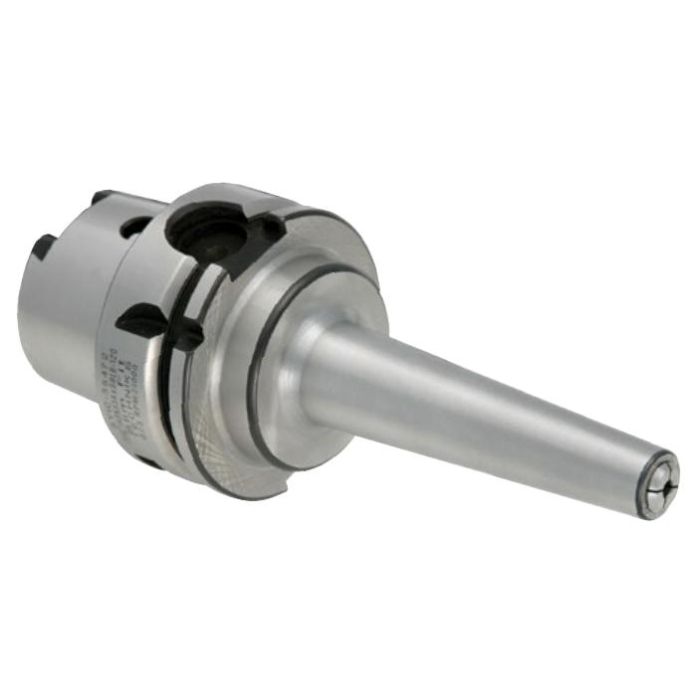

Techniks 35472 HSK63A x SBL6-120 SlimFIT

Internal drawbar collet eliminates need for clamping nut to permit narrow nose diameter. 4 ̊ collet provides greater holding power and improved accuracy.

Product Specifications

UNSPSC Code	27112809
Nose Dia (in)	0.55
Nose Dia (mm)	14
Body Dia (in)	0.866
Body Dia (mm)	22
Collet Series	SlimFIT 6
Mount	HSK63A
Unit of Tool	Metric
Shank Range (in)	0.094 - 0.25
Shank Range (mm)	2.39 - 6.35
Shank Size (in)	N/A
Shank Size (mm)	N/A
Type	SlimFIT Tool Holder
Style	Single Ended
Overall Diameter (in)	2.48
Overall Diameter (mm)	63
Gage Length (in)	4.72
Gage Length (mm)	120
Gage Length-Face Contact (in)	4.72
Gage Length-Face Contact (mm)	120
Overall Length (in)	6
Overall Length (mm)	152
Material	H13 Steel
