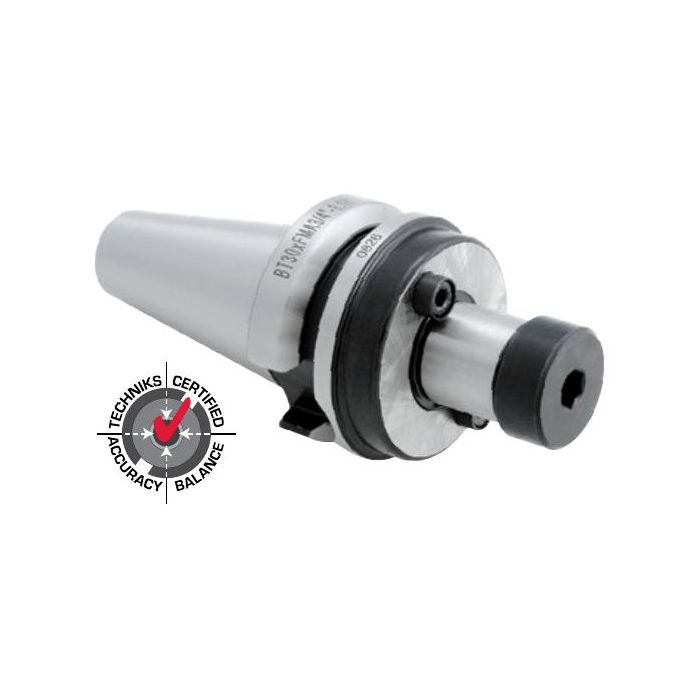

Techniks 16614 BT30 x 1-1/4" FMA - 1.77"

Dual-Contact Spindles: Dual-Contact is a spindle option offered by some machine tool builders. Dual-contact means both the toolholder taper and the flange make contact with the spindle. The dual-contact provides increased rigidity and accuracy during machining. Use Techniks DualDRIVE holders if your machine has a dual-contact spindle.

Product Specifications

UNSPSC Code	27112809
Overall Diameter (in)	1.811
Overall Diameter (mm)	46
Body Width (in)	2.37
Body Width (mm)	60.2
Taper Type	BT30
Material	8620 Steel
Type	Face Mill Arbor
Style	Single Ended
Coolant Supply	Optional through Arbor Screw
Hub Diameter (in)	1.25
Hub Diameter (mm)	31.75
Gage Length (in)	1.77
Gage Length (mm)	45
Gage Length-Face Contact (in)	1.691
Gage Length-Face Contact (mm)	43
Pilot Length (in)	0.87
Pilot Length (mm)	22.1
