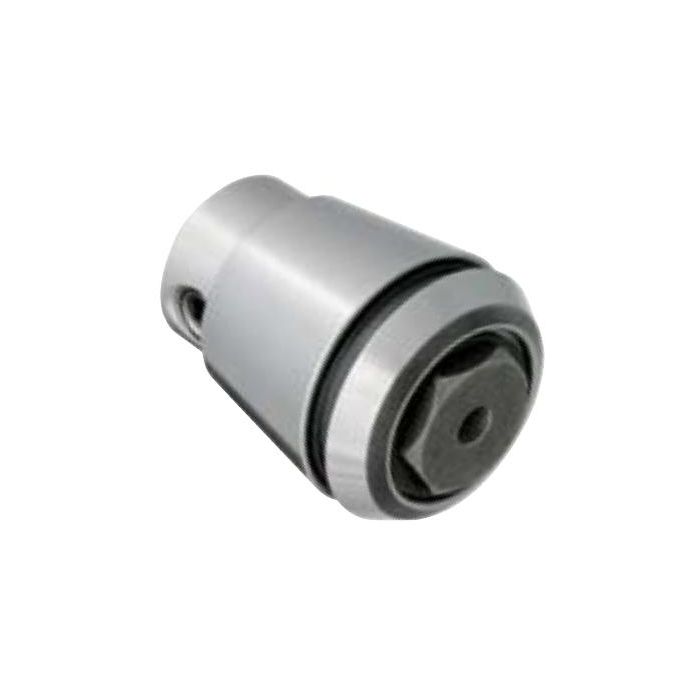

Techniks 05920-168 FT-120 Floating Tap Collets

Compatible with these standard collet chucks: ER, DR, RD, ESX, BR or DIN 6499 collet pockets. Applications: CNC lathes, VDI turrets, angle heads, CNC machine center, swiss style turning machines, and driven heads on CNC lathe turrets. Simply program the machine 5% behind the recommended pitch feed of the tap to make the floating collet work. Return out of the tapped hole at 100%. For best performance use FT tap collets with Techniks PowerCOAT nut.

Product Specifications

UNSPSC Code	27112808
Series	ER20
Capacity (in)	0.168
Capacity (mm)	4.27
Type	Floating Tap Collet
Style	Single Angle
Unit of Tool	Inch
Number of Pieces	N/A
Incremental Division	N/A
Shank Size (in)	0.168
Shank Size (mm)	4.27
Overall Length (in)	1.22
Overall Length (mm)	30.99
Square Size (in)	0.131
Square Size (mm)	3.33
Tap Range (in)	5/32" or #8
Tap Range (mm)	N/A
Tap Size (in)	5/32" or #8
Tap Size (mm)	N/A
