ShopFox w1687 3HP Dust Collector
This Price Is Lower When You Sign In
Details

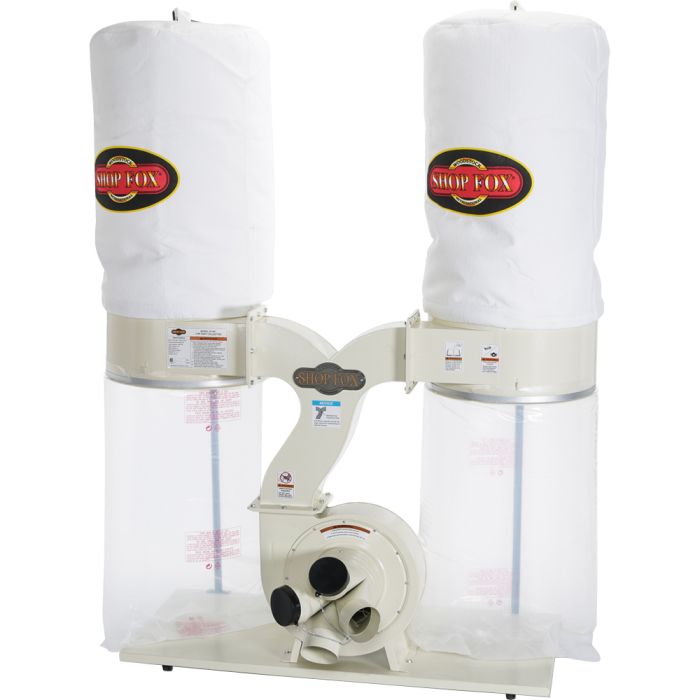

Shop Fox Dust Collector, 3 HP - W1687
This ShopFox W1687 3 HP Dust Collector will be your first choice when it is time to upgrade your dust collection system. The increased air suction capacity will allow you to build larger and more complex dust collection systems with room to spare. Also, the double collection setup means less down time emptying bags and shaking out filters - this translates to more time spent actually making the dust! CSA certified meeting CSA C22.2 #243-M91 and UL 1017-4th standards! For wood dust only.
Models manufactured after June 2015 come with a 2.5 micron felt upper filtration and a plastic (PE) lower collection bag. The upper 2.5 micron bag (D4572) and lower plastic bags (D4573-5pk) can be purchased separately for any collectors that do not include them.
Specifications:
| Motor size | 3 HP, 240V, Single-phase, 3,450 RPM |
| Motor amp draw | 12A |
| Impeller | 13" balanced steel radial fin |
| Maximum inlet size | 8" |
| Inlet adapter | 4-way x 4" inlets |
| Air suction cap. | Approx. 2,800 CFM |
| Static pressure | 14.4 |
| Bag size (Dia. x depth) | 19" x 33" (4) |
| Height (with bags inflated) | 78" |
| Bag volume | 10.8 Cubic Feet |
| Standard bag filtration | 2.5 Micron |
| Approx. shipping weight | 202 lbs. |
