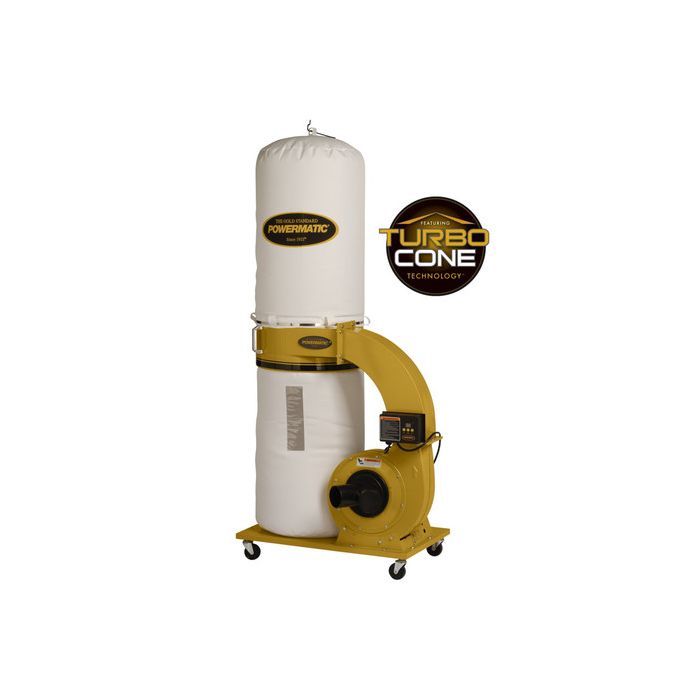

The PM1300TX Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The cloth filter bag is made of a 30 micron material which aids in the filtration of all but the finest dust particles, and the large capacity collection bag reduces the number of bag changes. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. Four swivel casters and conveniently located handles allow for easy mobility.
Details
Details
FEATURES: • TurboCone improves chip separation and collector bag packing efficiency • The cone eliminates premature filter clogging for sustained performance • Remote-controlled digital timer can be programmed for up to 99 minutes • All-metal duct construction for rigidity and improved air flow • Dual 4" dust ports for simultaneous collection from two machines • 1-3/4HP motor offers plenty of power for effective air movement • Cloth collection bag with view window uses snap ring for rapid installation/removal • 10 cubic feet capacity collection bag reduces number of bag changes. • Tall filter bag requires less cleaning due to the larger surface area • Four swivel casters for easy maneuverability
SPECIFICATIONS: • Motor Voltage (V.): 115/230 • Impeller Diameter (In.): 12 • Prewired Voltage (V.): 115 • Impeller Fins: 6 • Recommended Circuit Size (Amps.): 20/15 • Motor Current (Amps): 15/7.5 • Static Pressure (WC): 11.31 • Filter Bag/Canister Length (In.): 48 • Number of Air Inlets: 1(6") or 2(4") • 1-Hose Connection Diameter (In.): 6 • Motor Phase: 1 • Motor Power (HP): 1-3/4 • 2-Hoses Connection Diameter (In.): 4 • Air Flow @ 6" (CFM): 1,064 • Sound Rating (DB): 75 - 90 • Efficiency (Micron): 30 • Collection Bag Capacity (Cu. Ft.): 10 • Bag Diameter (In.): 20 • Collection Bag Length (In.): 30 • Impeller Material: Steel • Velocity @ 6" (FPM): 5,374
The PM1300TX Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The cloth filter bag is made of a 30 micron material which aids in the filtration of all but the finest dust particles, and the large capacity collection bag reduces the number of bag changes. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. Four swivel casters and conveniently located handles allow for easy mobility.
