Dynabrade 67913 2" (51 mm) W x 60" (1,524 mm) L Three Wheel Belt Grinder

• This Dynabrade Bench & Pedestal Belt Grinder is a versatile three-wheel belt grinding machine. It powers abrasive belts that are 2" wide by 60" long (51 mm x 1,524 mm).
• Dynabrade Bench & Pedestal Belt Grinder is ideal for a variety of applications, including grinding, deburring, finishing, shaping, fitting, plus removing flash and parting lines. Machine design allows smooth grinding from contact wheel, and sanding or finishing from slack of belt. Offered in complete range of electrical configurations.
• Amazing versatility – grind from contact wheel or platen; finish from slack of belt. Fully guarded to meet all OSHA standards. Work rest is adjustable to ensure accurate angle grinding.

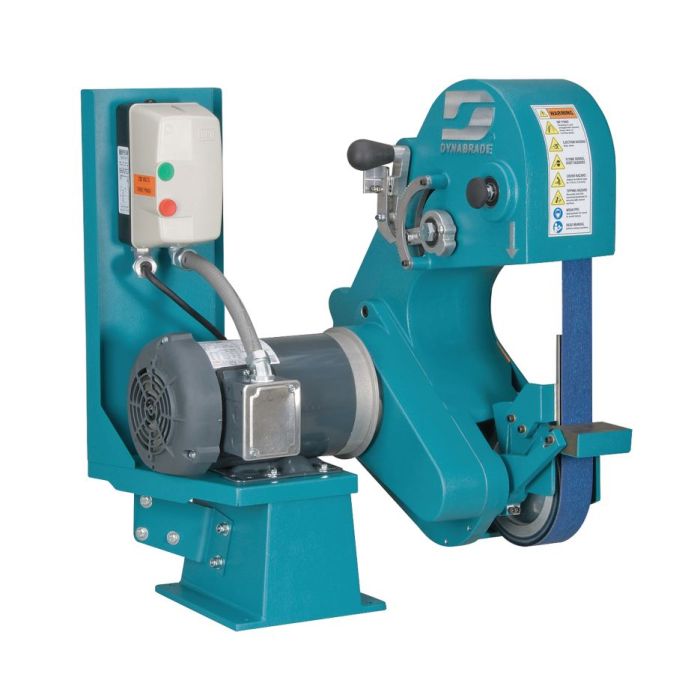

• Quick and easy belt change minimizes downtime and increases efficiency. Can be bench-mounted or attached to optional 67500 Pedestal Stand, as shown. Pedestal Stand offers height adjustment of 28" (711mm) to 38" (965), with capacity up to 300 lbs. (136 kg)
• Optional 67965 Vacuum Scoop also available, for efficient capture of dust and debris.

For the Dynabrade section Click here

Spec	Value
Abrasive Belt Size Inch (mm)	2" (51) x 60" (1,524)
Voltage	230 V (AC)
Phase	1
Frequency	60 Hz
hp (W)	1.5 (1,119)
Max. SFPM (SM/Min.)	800-8,000 (244-2,438)
Sound Level dB(A)
Full Load Amperage	10
Height Inch (mm)	27" (686)
Width Inches (mm)	21 (533)
Length Inches (mm)	20 (508)
