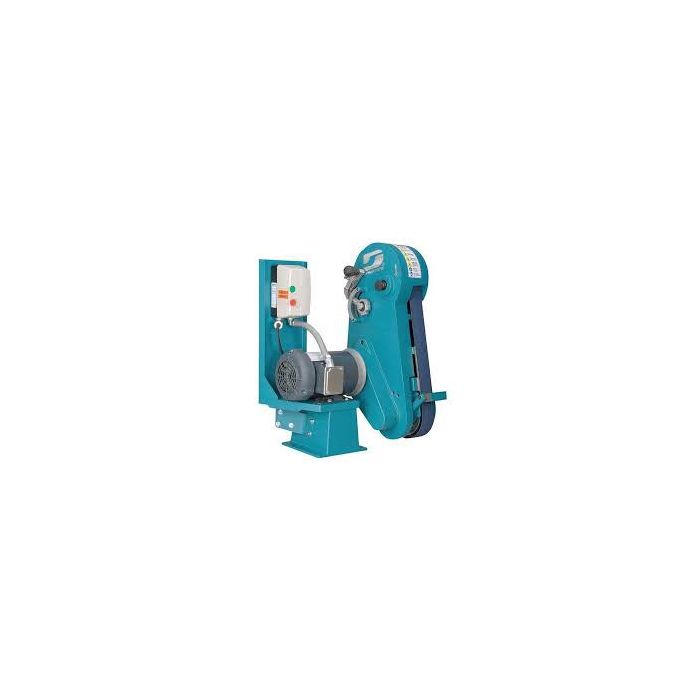

Dynabrade 67812 2-1/2" (64 mm) W x 60" (152 cm) L 2 Wheel Belt Grinder

• Dynabrade's Bench & Pedestal Belt Grinder is a versatile two-wheel belt grinding machine. It powers abrasive belts 2-1/2" wide by 60" long (64 mm x 1,524 mm).
• Dynabrade's Bench & Pedestal Belt Grinder is ideal for heavy-duty grinding applications, working from the contact wheel or platen pad. Machine design allows rotation of housing from vertical to horizontal positions, for optimum grinding efficiency. Offered in complete range of electrical configurations.
• Fully guarded to meet all OSHA standards. Work rest is adjustable to ensure accurate bevel grinding.
• Quick and easy belt change minimizes downtime and increases efficiency. Can be bench-mounted or attached to optional 67500 Pedestal Stand, as shown. Pedestal Stand offers height adjustment of 28" (711mm) to 38" (965), with capacity up to 300 lbs. (136 kg)
• Optional 67966 Vacuum Scoop also available, for efficient capture of dust and debris.

For the Dynabrade section Click here

Spec	Value
Abrasive Belt Size Inch (mm)	2-1/2" (64) x 60" (1,524)
Voltage	115 V (AC)
Phase	1
Frequency	60 Hz
hp (W)	1.5 (1,119)
Max. SFPM (SM/Min.)	800-8,000 (244-2,438)
Sound Level dB(A)
Full Load Amperage	20
Height Inch (mm)	29" (737)
Width Inches (mm)	21" (533)
Length Inches (mm)	29" (737)
