Dynabrade 67603 12" (305 mm) Dia. Disc Grinder

• Dynabrade's Bench & Pedestal Disc Grinder powers abrasive discs 12" (305 mm) in diameter.
• Dynabrade's Bench & Pedestal Disc Grinder is ideal for a variety of applications, including grinding and deburring castings or fabricated parts. Also used for shaping, flat grinding and contouring on metal, wood and plastic. Machine design allows quick disc change, and easy adjustment of work table for optimum efficiency. Offered in complete range of electrical configurations.
• Adjustable work table with miter ensures accurate angle grinding. Runs in forward and reverse modes.
• Fully guarded with adjustable work rest to meet all OSHA standards. Quick and easy disc change minimizes downtime and increases efficiency.

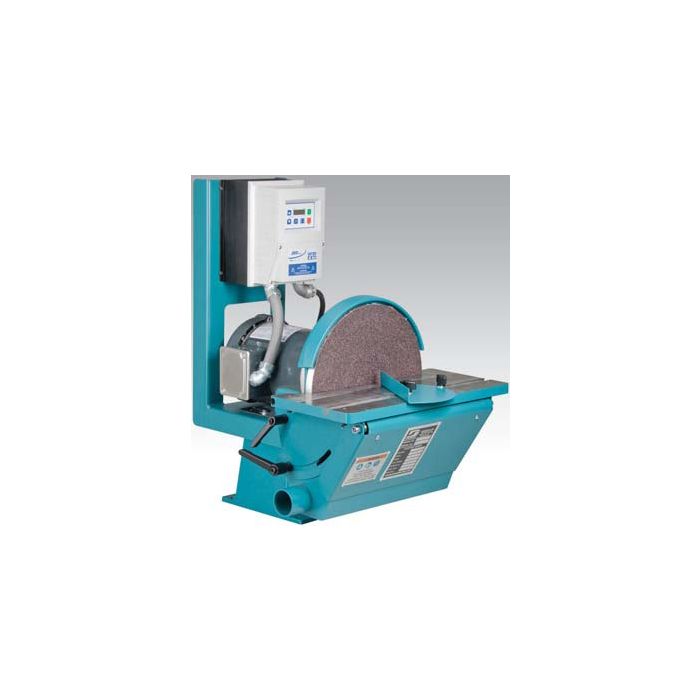

• Can be bench-mounted or attached to optional 67500 Pedestal Stand, as shown. Pedestal Stand offers height adjustment of 28" (711 mm) to 38" (965 mm), with capacity up to 300 lbs (136 kg).

For the Dynabrade section Click here

Spec	Value
Max. Abrasive Dia. Inches (mm)	12" (305)
Voltage	230 V (AC)
Phase	1
Frequency	60 Hz
hp (W)	1.5 (1,119)
Max RPM	500-1,725
Sound Level dB(A)
Full Load Amperage	10
Height Inch (mm)	17" (432)
Width Inches (mm)	21" (533)
Length Inches (mm)	18" (457)
