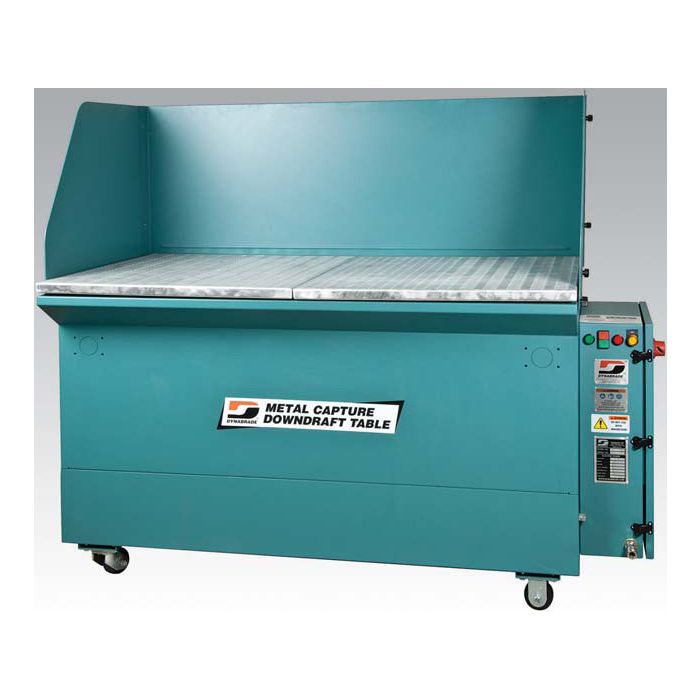

Dynabrade 64405 36" W x 60" L (914 mm W x 1,524 mm L) Metal Capture Downdraft Table

• Meets These NFPA Requirements: Interlock Pneumatic Valve with Blower and Time-Delay. Tools operate only when Downdraft Table is running; Class II, Group E Explosion-Proof Motor; Aluminum Top for Non-Spark Work Surface; Non-Spark Aluminum Blower on Collector’s Clean-Air Side; Automatic Water Level Control; Vented Sump (Main Tank); Low Voltage Control; Lockable Fused Power Disconnect
• Ideal for capturing aluminum and titanium dust. Working area of 36" wide x 60" long accommodates large work pieces. Includes casters for easy maneuvering; casters also lock securely into place.
• Choice of models that direct exhaust down, up, or to the side. Overload protection / fused disconnect for safety.
• Sturdy 12-gauge construction. Includes shields for both sides and back of table.
• Workpiece capacity / load rating of 2,000 pounds. 42 gallon capacity; 1,800 CFM at 4" static pressure. Easy system maintenance. No paper filters to replace!

For the Dynabrade section Click here

Spec	Value
Working Area Size W x L	36" (914) x 60" (1,524)
Capacity Gallons (Litres)	42 (191)
Workpiece Capacity / Load Rating Lbs. (kg)	2000 (907)
Electric Motor hp (W)	3 (2,237)
Voltage - Frequency	460 - 60 Hz
Phase	3
Vacuum Suction	1,800 (50,976) at 4" (102) Static Pressure
Sound Level dB(A)
Height Inch (cm)	33" (84)
Length Inch (cm)	70" (178)
Depth Inches (cm)	53" (135)
Exhaust Direction	Side
