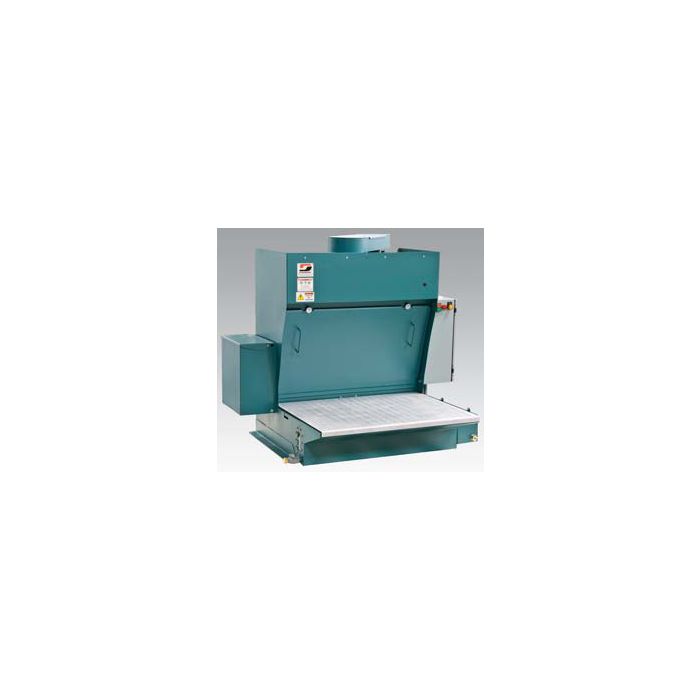

Dynabrade 64350 26" W x 36" L (660 mm W x 914 mm L) Metal Capture Downdraft Station

• Metal Finishing Station offers a wet filtration system to capture potentially combustible filings and dust in an air/water mixing zone. Also offers convenient disposal of slurry. Greatly decreases potential flammability of work area, when removing material from volatile substances.
• 36" (914 mm) Wide x 26" (660 mm) Deep work surface. Unique tabletop design not offered by other manufacturers. Can be placed on cart for transportability to every work station. Accepts 10" (254) Dual Wheel Grinder/Buffer.
• Water level view port allows operator to set initial water level and monitor level for adjustment. Water reservoir and float valve automatically compensate for water evaporation during use.
• Internal compartments are accessed with no tools required. Includes electric light for enhanced visibility.
• Transparent debris shield available. Stainless steel construction. No paper filters to replace. Grated work surface. Powder coat finish. GFI protection.

For the Dynabrade section Click here

Spec	Value
Work Surface Area Inches	26" (660) x 36" (914)
Voltage	230 V (AC)
Phase	3
Frequency	60 Hz
Amps (A) milliamps (mA)	3.0
Width Inches (mm)	53" (1,346)
Depth Inches (mm)	45" (1,143)
Height Inch (mm)	46" (1,168)
hp (W)	1.0 (746)
Sound Level dB(A)
Vacuum Suction	1,000 (28,317)
Capacity Gallons (Litres)	25 (95)
