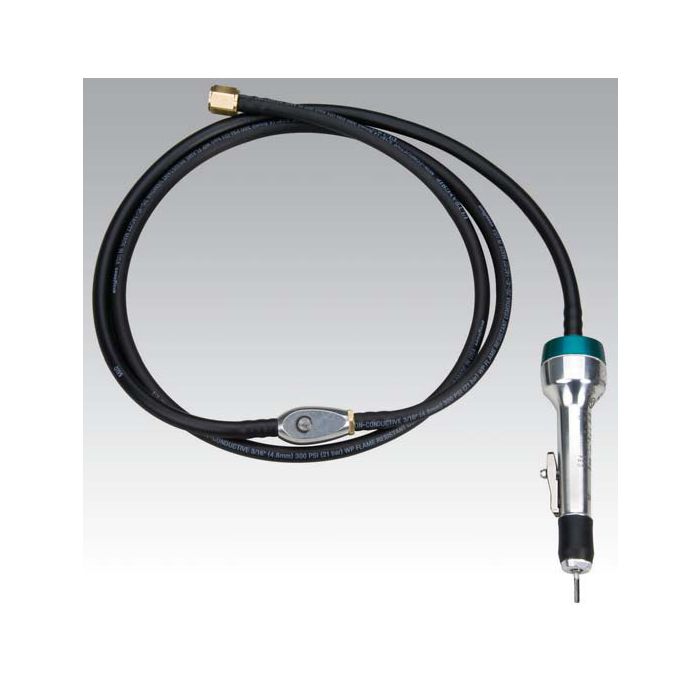

Dynabrade 60051 .1 hp Straight-Line Quick-Change Pencil Grinder

• Dynabrade’s Wrenchless Pencil Grinder combines precision deburring, engraving and finishing with an exciting new feature: a convenient lever for changing your accessory in seconds! A true time-saver for high production workplaces such as jewelry manufacturers, tool & die shops, aerospace industries and more.
• High-efficiency turbine-driven air motor has no wearable gears, vanes or blades. Oil-free operation minimizes maintenance time and repair costs. Air motor controlled by patented governor, providing constant tool speed under load. Tool housing has non-slip rubber grip for additional control. Tactile cues on shaft end alert operator to rotating collet area. Quality high-speed bearings ensure consistent, reliable operation. 1/8" and 3/32" Collets are interchangeable within each model.
• Accepts variety of accessories; Powers carbide burrs and mounted points, sold separately. Quick-Change Lever; Turn lever outward 90 degrees to open collet insert and easily replace accessory.
• Rapid-Stop Brake; Built-in brake stops tool motorwithin one second. Built-In Swivel; Provides 360 degrees of maneuverability for air line. High-Quality Air Line; 1/4" (6 mm) in dia. and 6 feet (1.82 m) in length.
• One-Touch Operation; Handy switch allows simple on/off operation.

For the Dynabrade section Click here

Spec	Value
Collet Size	1/8"
hp (W)	.1 (75)
Motor Free Speed (RPM)	60,000
Exhaust Type	Rear
Max. Air Flow @ 90 PSIG (6.2 Bar): SCFM (L/Min.)	8 (227)
Air Inlet Thread	1/4" NPT
Hose I.D. Size Inches (mm)	1/4" (6)
Length Inches (mm)	5-5/16" (135)
Height Inches (mm)	1-1/2 (38)
Sound Level dB(A)
Vibration Information
