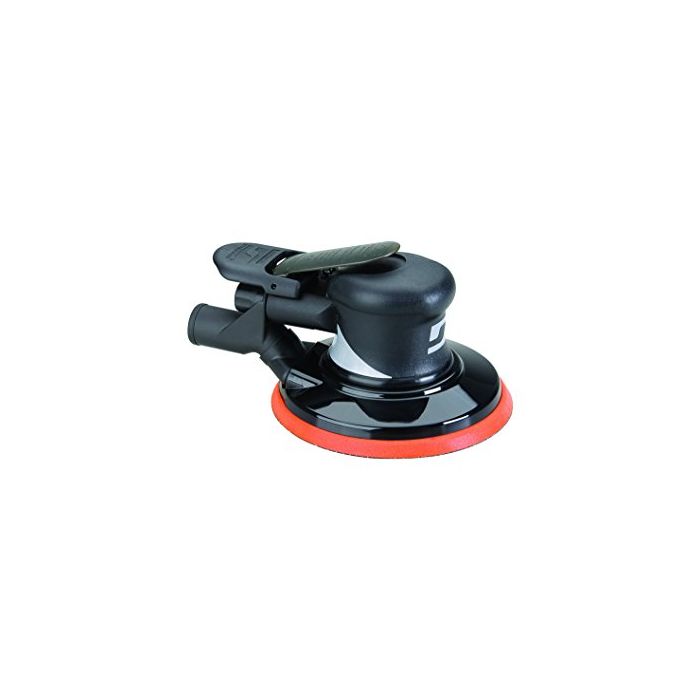

Dynabrade 56863 6" (152 mm) Dia. Central Vacuum Dynorbital Supreme Random Orbital Sander

• Central Vacuum Dynorbital Supreme includes low profile, premium urethane weight-mated sanding pad. Has 1" outside diameter vacuum port, for easy connection to central vacuum system. 3/32" (2.5 mm) diameter orbit.
• Dynorbital Supreme models run at 12,000 RPM. Rotor utilizes five blades and produces more useable power. Composite rotor is stronger and has better lubricating qualities, enabling blades to last longer.
• Composite base has integrated rubber over-mold creating a non-slip feel, as well as insulating from cold. The air motor is suspended by vibration-absorbing rubber rings (Patent No. 5,319,888) to minimize vibration.
• Triple-sealed front double row balancer bearing (Patent No. 4,854,085) is guarded from sanding residue for long life and lower maintenance; easy replacement using 57098 Repair Kit.
• Anti-clog design (Patent No. 5,319,888) enhances the vacuum pick-up on central vacuum models. Dust particles are directed away from the air motor (reducing contamination) following a smoother, easier path of extraction. Comfort Platform provides additional hand and wrist support, further enhancing operator comfort. Also offers increased protection against cold air exhaust. (NOTE: Comfort Platform is removable.) Order 59330 Comfort Platform (U.S. Patent No. D610,428) separately, to install on existing tools!

For the Dynabrade section Click here

Spec	Value
Backing Pad Diameter Inch (mm)	6" (152)
Tool Spindle Thread	5/16"-24 Female
Orbit Dia. Inch (mm)	3/32" (2.5)
Free Speed RPM	12,000
hp (W)	0.28 (209)
Exhaust Type	Rear
Max. Air Flow @ 90 PSIG: SCFM (L/Min.)	18 (510)
Hose I.D. Size Inch (mm)	1/4" (6)
Length Inch (mm)	7-3/4" (197)
Height Inch (mm)	3-1/2" (89)
Sound Level dB(A)
Vibration Information
