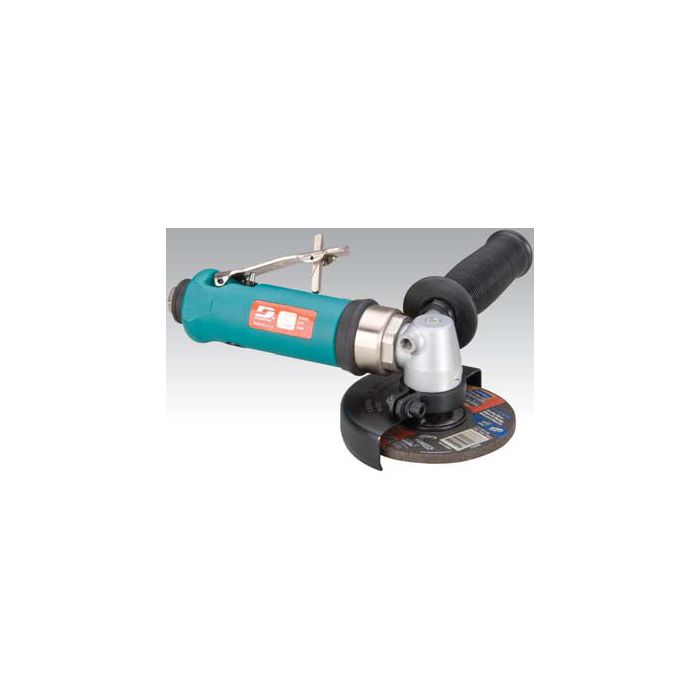

Dynabrade 54771 4" (102 mm) Dia. Right Angle Type 27 Depressed Center Wheel Grinder
$911.39
In stock
SKU
DB54771
4" (102 mm) Dia. Right Angle Type 27 Depressed Center Wheel Grinder
.7 hp, 12,000 RPM, Composite
.7 hp, 12,000 RPM, Composite
Details
- Model accepts optional 4" (102 mm) diameter Type 27 reinforced Depressed Center Wheels, with 3/8" (10 mm) center hole; wheel width of 1/8" to 1/4" (3 mm to 6 mm).
- Dual-wick lubrication system saturates gears with oil for increased performance, extended life and reduced downtime.
- Adjustable wheel guard provides maximum operator protection.
- Models include aluminum right angle housing.
- Each model includes side handle for left or right-hand use.
For the Dynabrade section
Click here
| Spec | Value |
|---|---|
| Type 27 Grinding Wheel Dia. Inch (mm) | 4" (102) |
| Tool Thread | 3/8"-24 Male |
| hp (W) | 0.7 (522) |
| Free Speed RPM | 12,000 |
| Exhaust Type | Rear |
| Max. Air Flow @ 90 PSIG: SCFM (L/Min.) | 40 (1,133) |
| Hose I.D. Size Inch (mm) | 3/8" (10) |
| Length Inch (mm) | 8" (202) |
| Height Inch (mm) | 3-1/16" (78) |
| Air Inlet Thread | 1/4" NPT |
| Sound Level dB(A) |  |
