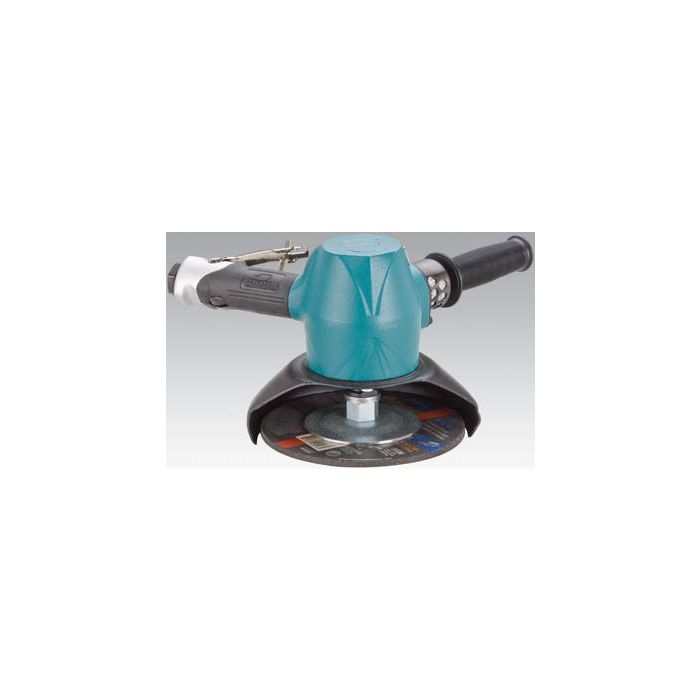

Dynabrade 53245 7" (178 mm) Dia. Type 27 Vertical Depressed Center Wheel Grinder

In stock
7" (178 mm) Dia. Type 27 Vertical Depressed Center Wheel Grinder

3 hp, 8,500 RPM, Gearless, Rotational Exhaust, 5/8"-11 Spindle Thread
  • Ideal for heavy-duty applications in foundries and shipyards. Fast stock, rust and scale removal.
  • Governor-controlled air motor maintains tool RPM under heavy load. Over-speed shut-off feature ensures maximum operator safety. Motor is gearless with less wearable parts, ensuring reduced maintenance and less down-time.
  • Insulated tool handle minimizes cold air transmission to the hand. Handle position is adjustable for operator comfort. Includes safety-lock throttle lever. For peak performance, use of optional 95870 Air Hose-1/2" (13 mm) diameter is recommended.
  • Model accepts optional Type 27 reinforced Depressed Center Wheels, 7" (178 mm) diameter. Wheel NOT included with tool. Covers more area in less time!
  • More information here! D12.05R

For the Dynabrade section Dynabrade Section Click here

Type 27 Grinding Wheel Dia. Inch (mm)7" (178)
Spindle Thread5/8"-11 Male
hp (W)3 (2,237)
Free Speed RPM8,500
Exhaust TypeRotational Side Exhaust
Max. Air Flow @ 90 PSIG: SCFM (L/Min.)97 (2,747)
Hose I.D. Size Inch (mm)1/2" (13)
Length Inch (mm)9.5" (241)
Height Inch (mm)7" (179)
Air Inlet Thread1/2" NPT
Sound Level dB(A)
