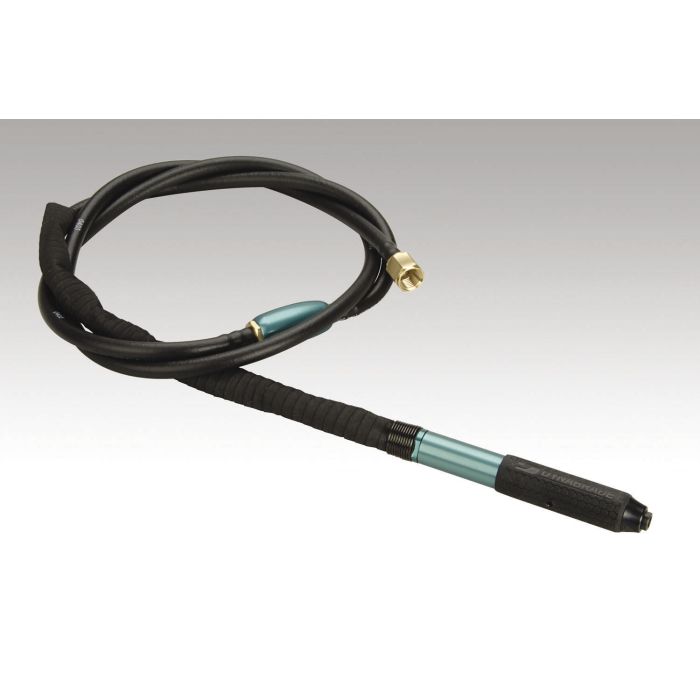

Dynabrade 52855 0.1 hp Straight-Line Variable Speed Pencil Grinder

$516.80
In stock
SKU
DB52855
0.1 hp Straight-Line Variable Speed Pencil Grinder

35-60,000 RPM, Rotary Vaned Air Motor, 3mm Collet
  • Dynabrade’s Variable Speed Pencil Grinder offers precision deburring, finishing and engraving, with easily adjustable speed to suit each application. This is an essential tool for turbine blade manufacturers, tool & die shops, machine shops, investment castings, jewelry, medical implants, composites and more!
  • High-Quality Air Line; 1/4" (6 mm) in diameter and 5 feet (1.5 m) in length. Over-hose Assembly; Helps direct air and excess oil away from operator - 12" (305 mm) in length. Variable Speed Flow Control; Adjust your desired speed with dial, up to 60,000 RPM. Unlike “roll valves,” your speed stays set when turning tool off and on. One Touch Starts Tool at Desired Speed; Handy push-button for simple on/off operation. Tool comes on at same speed as when you shut it off!
  • Ergonomic Tactile Grip; Tactile, non-slip grip is insulated for comfortable use. Large Precision Bearings; Ensure longer tool life than competitive models. Spindle Lock Allows Easy Collet Tightening; With “thru-hole” for quick accessory change. No struggling with two wrenches! Low Collet Run-Out; Run-out of less than .003 minimizes vibration and ensures high-quality cut.
  • Model accepts optional collet inserts: 1/16" (51760) and 3/32" (51674).


For the Dynabrade section Dynabrade Section Click here



SpecValue
Collet Size3 mm
hp (W)0.1 (75)
Motor Free Speed (RPM)60,000
Exhaust TypeRear
Max. Air Flow @ 90 PSIG (6.2 Bar): SCFM (L/Min.)6 (170)
Air Inlet Thread1/4" NPT
Hose I.D. Size Inches (mm)1/4" (6)
Length Inches (mm)4.5 (114)
Diameter Inches (mm)0.6 (15)
Sound Level dB(A)
