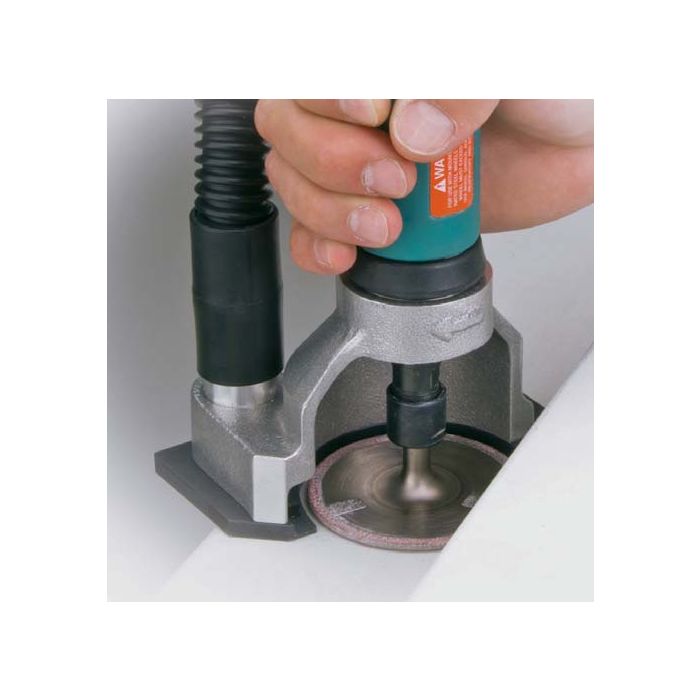

Dynabrade 52418 3" (76 mm) Straight-Line Central Vacuum Flush Cut-Off Wheel Tool

In stock
3" (76 mm) Straight-Line Central Vacuum Flush Cut-Off Wheel Tool

.7 hp, 20,000 RPM, Rear Exhaust, 3/8" Collet
  • Our Air Powered, 3" (76 mm) Dia., Straight-Line, Flush Cut-Off Wheel Tool is ideal for Central Vacuum Systems. The unique shroud and Flange design adds versatility. This too has plenty of power, .7 hp, 20,000 RPM, Rear Exhaust.
  • Accepts optional 3" (76 mm) diameter Diamond Cut-Off Wheels with 3/8" (10 mm) diameter mandrel. Unique cutaway shroud design allows 1" (25 mm) wheel depth exposure. Non-marring plastic flange protects work surface while cutting. Includes 94300 Composite Dynaswivel, enhancing operator comfort and control.
  • Adjustable cutting height, from flush to 5/8" (16 mm) above work surface, is achieved by inserting wheel mandrel deeper into collet. Operating tool in horizontal position allows flush-cut trimming of edges. An essential tool for boat builders, pool, spa and shower manufacturers, and in composite industries. Safety-lock lever is included.
  • Extended rear exhaust muffler for reduced sound levels. Ideal for both vertical and horizontal operation. A 3" (76 mm) dia. diamond wheel with integrated mandrel is required (sold separately).
  • Tool has 1" (25 mm) Dia. Vacuum Port for Cental Vacuum Systems. Speed of tool must not exceed maximum operating speed of accessory. Never mount bonded grinding wheels. Always wear eye, face & body protection.

For the Dynabrade section Dynabrade Section Click here

Type-1 Cut-Off Wheel Dia. Inch (mm)3" (76)
Collet Size Inches3/8"
hp (W)0.7
Free Speed RPM20,000
Exhaust TypeRear
Max. Air Flow @ 90 PSIG: SCFM (L/Min.)37 (1,048)
Hose I.D. Size Inch (mm)3/8" (10)
Length Inch (mm)10-5/16" (265)
Height Inch (mm)5-1/4" (133)
Sound Level dB(A)
Vibration Information
