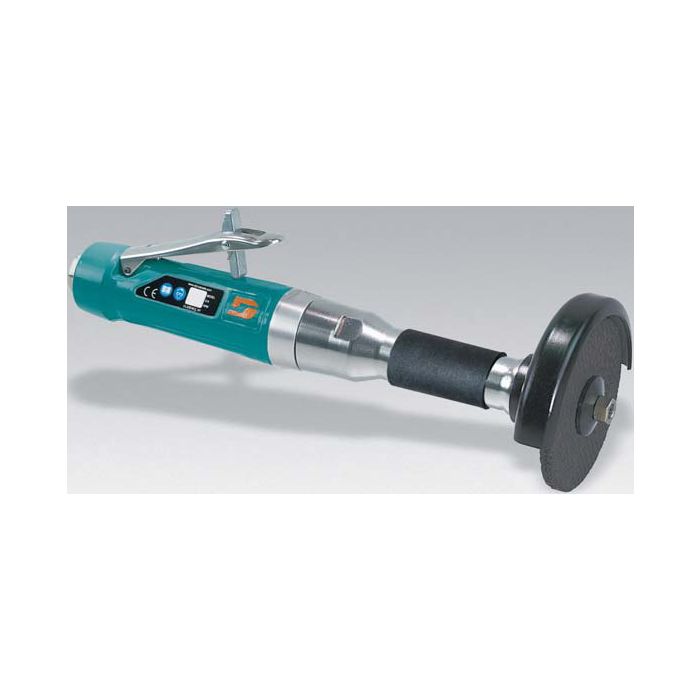

Dynabrade 52378 3" (76 mm) Dia. Straight-Line Type 1 Extension Wheel Grinder
$734.40
In stock
SKU
DB52378
3" (76 mm) Dia. Straight-Line Type 1 Extension Wheel Grinder
1 hp, 18,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread
1 hp, 18,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread
Details
- Type 1 Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.
- 3" Diameter, Straight Line, 1 hp, 6" Extension, 18,000 RPM.
- Accepts optional 3" diameter Type 1 Wheel, with 3/8" center hole (maximum wheel width of 1/2"). Governor-controlled motor maintains RPM under heavy load; rear exhaust.
- Safety-lock lever is included on all models.
- Standard cushioned grip enhances operator comfort and control.
For the Dynabrade section
Click here
| Spec | Value |
|---|---|
| Type 1 Grinding Wheel Dia. Inch (mm) | 3" (76) |
| Spindle Thread | 3/8"-24 Male |
| hp (W) | 1 |
| Free Speed RPM | 18,000 |
| Exhaust Type | Rear |
| Max. Air Flow @ 90 PSIG: SCFM (L/Min.) | 40 (1,133) |
| Hose I.D. Size Inch (mm) | 3/8" (10) |
| Length Inch (mm) | 14-1/4" (362) |
| Height Inch (mm) | 3-1/2" (89) |
| Sound Level dB(A) |  |
| Vibration Information | |
