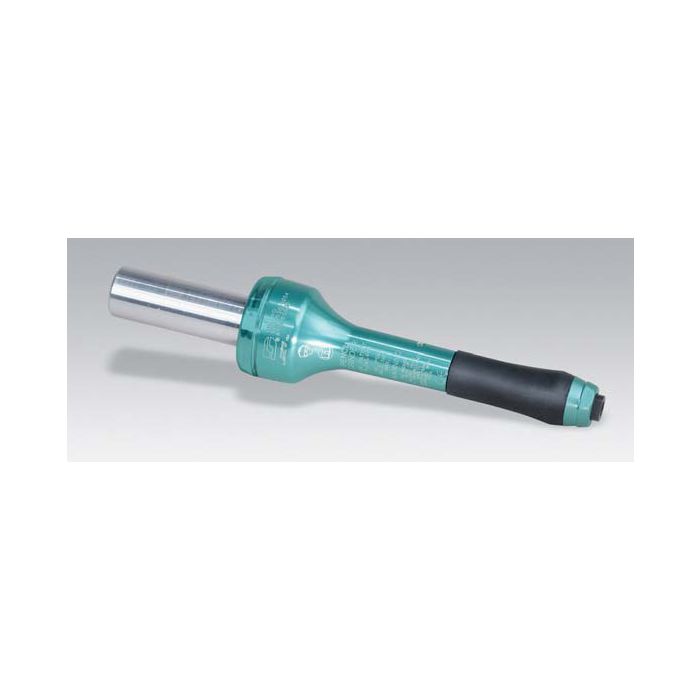

Dynabrade 51742 .1 hp Straight-Line Pencil Grinder

• Tool has integrated collet with 3 mm Collet Insert (51673)
• Turbine-Driven Air Motor Models are ideal for precision deburring and finishing on a variety of surfaces. High-efficiency air motor has no wearable gears, vanes or blades. Oil-free operation minimizes maintenance time and repair costs. Air motor is controlled with patented governor, providing constant tool speed under load. Quality high-speed bearings are included.
• Housing has non-slip rubber grip for additional control. Tactile cues on shaft end alert operator to rotating collet area.
• Changing of attachment is achieved with easy, two-wrench maneuver. Includes high-quality flexible air hose.
• Teal Tool Cap for easy tool speed identification when using multiple models. Model includes Mount Stem for use on robotic arms and other fixed mount applications.

For the Dynabrade section Click here

Spec	Value
Collet Size	3 mm
hp (W)	.1 (75)
Motor Free Speed (RPM)	60,000
Exhaust Type	Rear
Max. Air Flow @ 90 PSIG (6.2 Bar): SCFM (L/Min.)	8 (227)
Air Inlet Thread	1/4" NPT
Hose I.D. Size Inches (mm)	1/4" (6)
Length Inches (mm)	7-3/16" (182)
Height Inches (mm)	1-1/2 (39)
Sound Level dB(A)
Vibration Information
