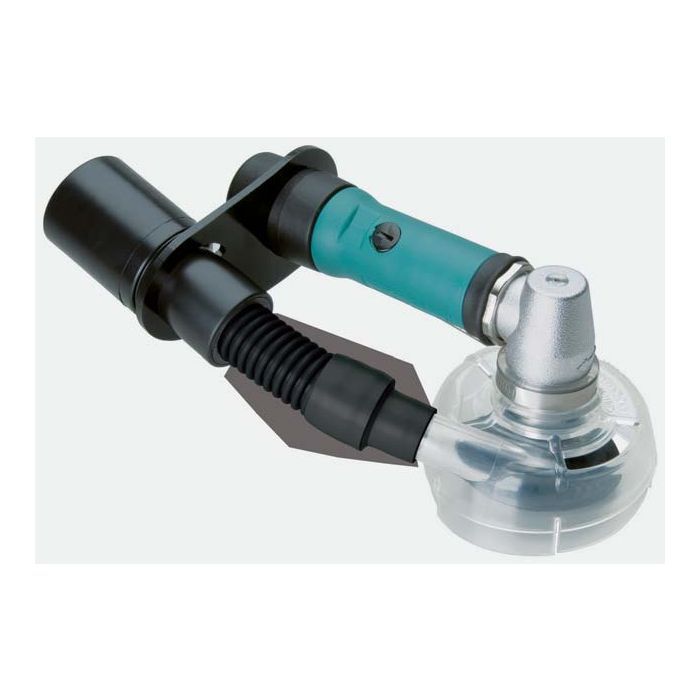

Dynabrade 50561 3" (76 mm) Dia. Right Angle Disc Sander, Central Vacuum

$610.30
In stock
SKU
DB50561
3" (76 mm) Dia. Right Angle Disc Sander, Central Vacuum

.4 hp, 15,000 RPM, Rear Exhaust, Locking-Type Disc, Standard Shroud
  • Powerful .4 hp (298 W) Air Motor for Smooth, Controlled Sanding. Unique Vacuum Shroud Diverts Dust and Debris to Vacuum Source. For Use With 3" (76 mm) Diameter Locking-Type Abrasive Discs
  • Dynabrades Vacuum Disc Sander powers 3" (76 mm) diameter Abrasive Discs, for efficient material removal on non-ferrous surfaces such as carbon fiber, fiberglass, painted aluminum and more. As tool is sanding, flexible Vacuum Shroud captures dust, debris and contaminants (including Hexavalent Chromium) to vacuum source - ensuring cleaner, safer workplace. This is an essential tool for aerospace, automotive, marine and transportation industries!
  • Each model includes 51346 Backing Pad, for 3" (76 mm) diameter locking-type abrasive discs. 1-1/4" (32 mm) diameter vacuum port ready for connection to external or central vacuum system.
  • Standard Shroud height of 1-1/2" (38 mm) accommodates 3" (76 mm) diameter bristle-type discs (sold separately). Standard Shroud may also be trimmed for customized applications. Vacuum Shroud constructed of high-quality clear urethane. Unique view -port allows operator to see edge of sanding disc, and offers optimum view of work surface. Flexible, non-marring Vacuum Shroud allows capture of dust, debris and contaminants (including Hexavalent Chromium) for cleaner, safer work environment. Vacuum Shroud angle of 6 degrees ensures ideal surface contact for maximum debris extraction.
  • Wick-Lube system extends gear life with simple lubrication.


For the Dynabrade section Dynabrade Section Click here



SpecValue
Backing Pad Diameter Inch (mm)3" (76)
hp (W).4 (298)
Free Speed RPM15,000
Tool Spindle Thread1/4"-20 Male
Exhaust TypeRear
Max. Air Flow @ 90 PSIG: SCFM (L/Min.)21 (595)
Hose I.D. Size Inch (mm)1/4" (6)
Length Inch (mm)10" (254)
Height Inch (mm)4-3/8" (109)
Sound Level dB(A)
Vibration Information
