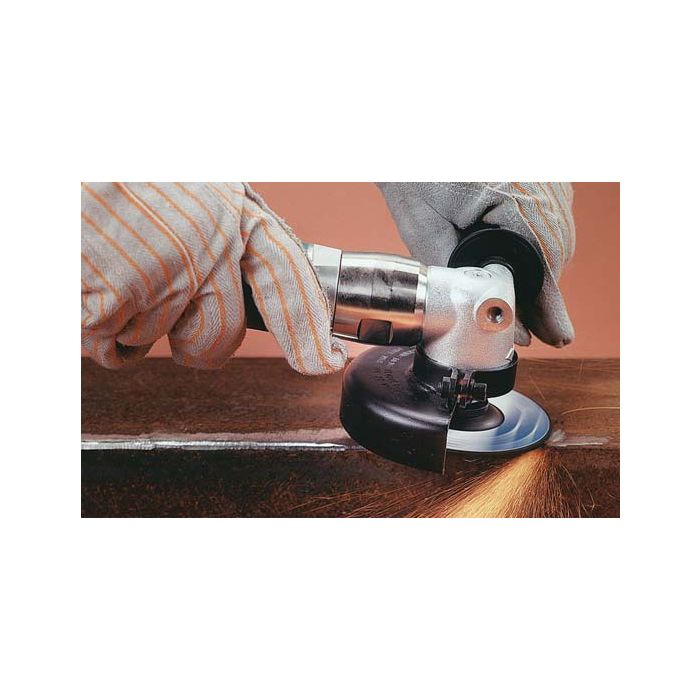

Dynabrade 50302 4" (102 mm) Dia. Right Angle Depressed Center Wheel Grinder

$962.20
In stock
SKU
DB50302
4" (102 mm) Dia. Right Angle Depressed Center Wheel Grinder

1 hp, 12,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread
  • Depressed Center Wheel Grinder, for fast weld and stock removal, rust and scale removal, heavy deburring.
  • 4" Diameter, Right Angle, 1 hp, Rear Exhaust, 12,000 RPM.
  • Accepts optional 4" diameter Type 27 Depressed Center Wheel, with 5/8" center hole (wheel width of 1/8" to 1/4").
  • Powerful high-torque grinding action; standard muffler for reduced sound levels.
  • Reversible side handle for left or right hand operation.


For the Dynabrade section Dynabrade Section Click here



SpecValue
Type 27 Grinding Wheel Dia. Inch (mm)4" (102)
Spindle Thread3/8"-24 Male
hp (W)1
Free Speed RPM12,000
Exhaust TypeRear
Max. Air Flow @ 90 PSIG: SCFM (L/Min.)40.2 (1,138)
Hose I.D. Size Inch (mm)3/8" (10)
Length Inch (mm)11-3/4" (299)
Height Inch (mm)3-5/8" (92)
Sound Level dB(A)
Vibration Information
