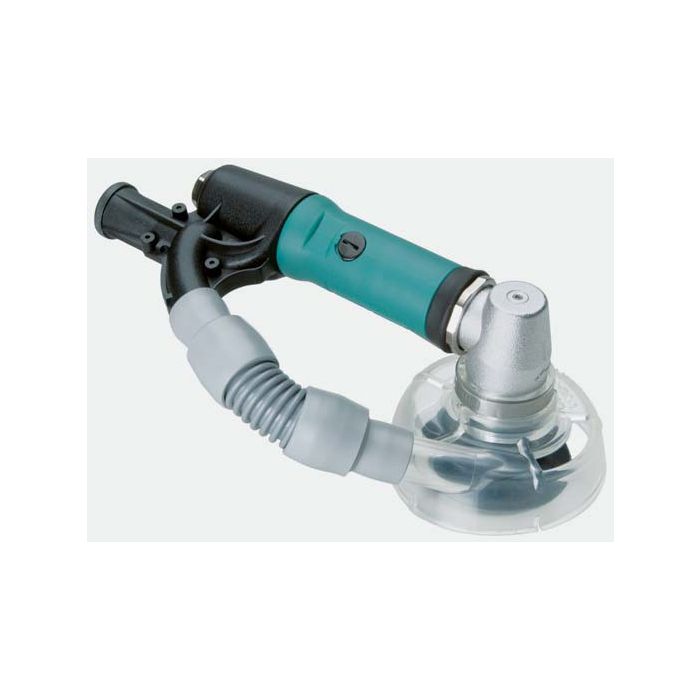

Dynabrade 50210 3" (76 mm) Dia. Right Angle Disc Sander, Self-Generated Vacuum

$606.90
In stock
SKU
DB50210
3" (76 mm) Dia. Right Angle Disc Sander, Self-Generated Vacuum

.4 hp, 15,000 RPM, Geared, Extended Rear Exhaust, Locking-Type Female Pad, Trimmed Shroud
  • Powerful .4 hp (298 W) Air Motor for Smooth, Controlled Sanding. Unique Vacuum Shroud Diverts Dust and Debris to Vacuum Source. For Use With 3" (76 mm) Diameter Locking-Type Abrasive Discs
  • Dynabrade's Vacuum Disc Sander powers 3" (76 mm) diameter Abrasive Discs, for efficient material removal on non-ferrous surfaces such as carbon fiber, fiberglass, painted aluminum and more. As tool is sanding, flexible Vacuum Shroud captures dust, debris and contaminants (including Hexavalent Chromium) to vacuum source - ensuring cleaner, safer workplace. This is an essential tool for aerospace, automotive, marine and transportation industries!
  • Each model includes 51346 Backing Pad, for 3" (76 mm) diameter locking-type abrasive discs. Utilizes tools exhaust to create strong vacuum suction. 1" (25 mm) diameter vacuum port ready for connection to optional portable self-contained dust collection system.
  • Trimmed Shroud height of 1" (25 mm) accommodates 3" (76 mm) diameter locking-type abrasive discs (sold separately). Vacuum Shroud constructed of high-quality clear urethane. Unique view -port allows operator to see edge of sanding disc, and offers optimum view of work surface. Flexible, non-marring Vacuum Shroud allows capture of dust, debris and contaminants (including Hexavalent Chromium). Vacuum Shroud angle of 6 degrees ensures ideal surface contact for maximum debris extraction.
  • Wick-Lube system extends gear life with simple lubrication.


For the Dynabrade section Dynabrade Section Click here



SpecValue
Backing Pad Diameter Inch (mm)3" (76)
hp (W).4 (298)
Free Speed RPM15,000
Tool Spindle Thread1/4"-20 Male
Exhaust TypeRear
Max. Air Flow @ 90 PSIG: SCFM (L/Min.)21 (595)
Hose I.D. Size Inch (mm)1/4" (6)
Length Inch (mm)9-11/16" (247)
Height Inch (mm)3-7/8" (97)
Sound Level dB(A)
Vibration Information
