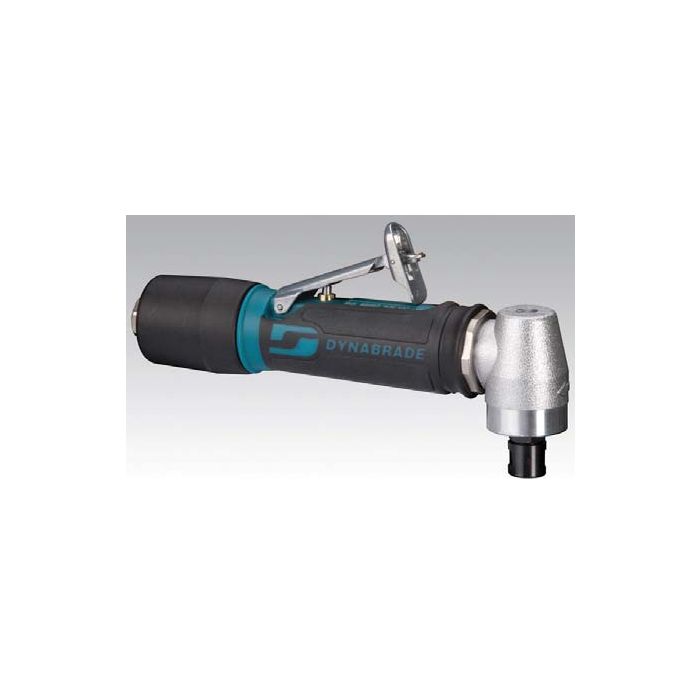

Dynabrade 46002 .4 hp Right Angle Die Grinder (Replaces 50002 and 50005)

$569.50
In stock
SKU
DB46002
.4 hp Right Angle Die Grinder (Replaces 50002 and 50005)

20,000 RPM, Spiral-Geared, Extended Rear Exhaust, 1/4" Collet
  • Kevlar® phenolic vanes for longer life. Lightweight ergonomic design for greater comfort and control. One-piece spindle keeps all rotating components on the same centerline for reduced run-out, which means lower vibration levels for enhanced operator comfort.
  • All models have air passage to continually cool the gear box; gears last longer! Pinion piloted on rotor to reduce run-out. Needle bearing assures proper shaft alignment.
  • Dual wick lubrication system – saturated with gear oil for extended gear life – over 700 hours. This helps administer the right amount and keep the gear oil on the metal gears. Highest horsepower and torque levels of any similar competitive product.
  • Governor-controlled motor maintains speed under load. Includes both 1/4" & 6mm collet inserts.


For the Dynabrade section Dynabrade Section Click here



SpecValue
Collet Size1/4" and 6 mm
hp (W).4 (298)
Motor Free Speed (RPM)20,000
Exhaust TypeRear with Extended Muffler
Max. Air Flow @ 90 PSIG (6.2 Bar): SCFM (L/Min.)25 (708)
Air Inlet Thread1/4" NPT
Hose I.D. Size Inches (mm)1/4" (6)
Length Inches (mm)8" (203)
Height Inches (mm)2.9" (73)
Sound Level dB(A)
