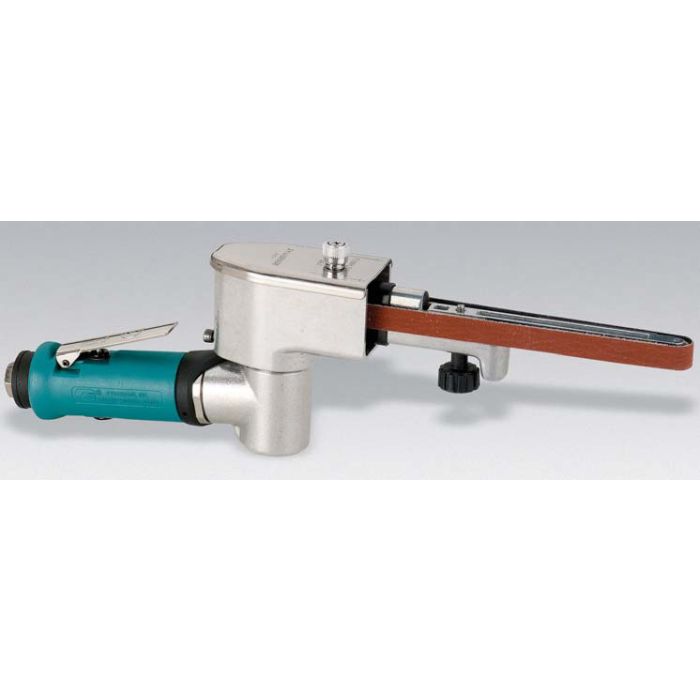

Dynabrade 40352 Dynafile II Abrasive Belt Tool

$535.50
In stock
SKU
DB40352
Dynafile II Abrasive Belt Tool

.4 hp, 7 Degree Offset, 25,000 RPM, Front Exhaust, for 1/8"-3/4" W x 18" L (3-19 mm x 457 mm) Belts
  • .4 hp Dynafile II adds a lightweight, compact variation to Dynabrades famous Abrasive Belt Tool line. Includes 11203 Contact Arm, for coated abrasive belts 1/2" wide x 18" long.
  • Grind, deburr, blend, finish and polish. Grind from contact wheel or platen pad; finish and polish using slack of belt. For use on metal, plastic, fiberglass, composites, glass and more.
  • Compact, low profile housing allows easy access in tight spots and previously inaccessible areas. Grinding head pivots 360 degrees for additional flexibility. Ergonomic 7 degree offset handle.
  • Lightweight tool design minimizes operator fatigue and increases efficiency.
  • Belt guard easily detaches for quick abrasive change; simple belt tracking adjustment knob.


For the Dynabrade section Dynabrade Section Click here



SpecValue
Belt Size Inches (mm)1/8-3/4" (3-19) W x 18" (457) L
hp (W).4 (321)
Motor Free Speed (RPM)25,000
Max. SFPM (SM/Min.)5,730 (1747)
Motor Style7 Degree Offset
Exhaust TypeFront Exhaust
Max. Air Flow @ 90 PSIG (6.2 Bar): SCFM (L/Min.)22 (626)
Air Inlet Thread1/4" NPT
Hose I.D. Size Inches (mm)3/8" (10)
Length Inches (mm)14" (356)
Height Inches (mm)4-1/8" (105)
Sound Level dB(A)
Vibration Information
