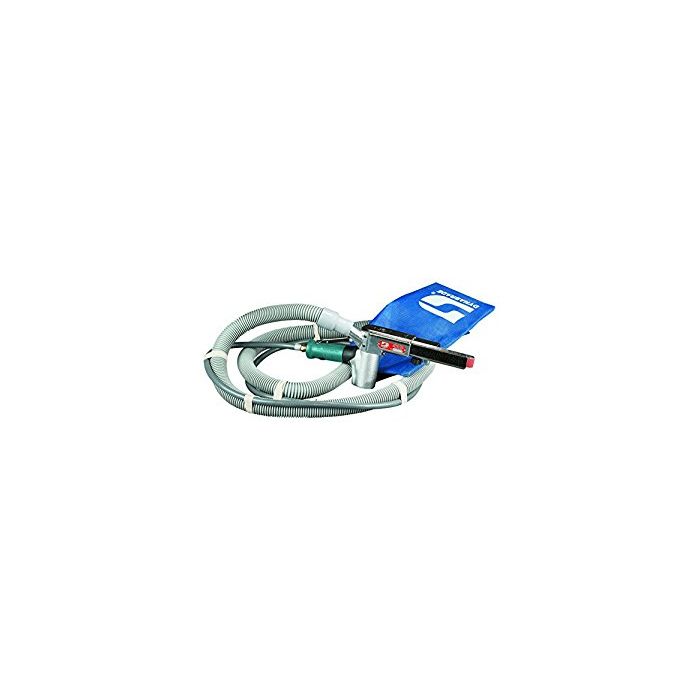

Dynabrade 40330 Vacuum Dynafile II Abrasive Belt Tool
$812.60
In stock
SKU
DB40330
Vacuum Dynafile II Abrasive Belt Tool
.5 hp, 7 Degree Offset, 20,000 RPM, Front Exhaust, 1/4-3/4" W x 18-24" L (6-19 mm x 457-610 mm) Belt
.5 hp, 7 Degree Offset, 20,000 RPM, Front Exhaust, 1/4-3/4" W x 18-24" L (6-19 mm x 457-610 mm) Belt
Details
- Vacuum Dynafile II allows you to vacuum while you work. Highly portable vacuum system works on tool's exhaust.
- Includes self-contained 'bag-within-bag' dust collection system. 54288 'bag-within-bag' system also sold separately.
- Includes 11206 Contact Arm for 3/4" wide x 18" long abrasive belts.
- Excellent for grinding, deburring, finishing and polishing, on wood, plastic, fiberglass and exotic metals.
- Air line is included and joined to exhaust hose to form 'one cord' for superb maneuverability.
For the Dynabrade section
Click here
| Spec | Value |
|---|---|
| Belt Size Inches (mm) | 1/4-3/4" (6-19) W x 18-24" (457-610) L |
| hp (W) | .5 (373) |
| Motor Free Speed (RPM) | 20,000 |
| Max. SFPM (SM/Min.) | 5,730 (1,747) |
| Motor Style | 7 Degree Offset |
| Exhaust Type | Front Exhaust |
| Max. Air Flow @ 90 PSIG (6.2 Bar): SCFM (L/Min.) | 22 (623) |
| Air Inlet Thread | 1/4" NPT |
| Hose I.D. Size Inches (mm) | 1/4" (6) |
| Length Inches (mm) | 14" (355) |
| Height Inches (mm) | 5.3" (135) |
| Sound Level dB(A) |  |
