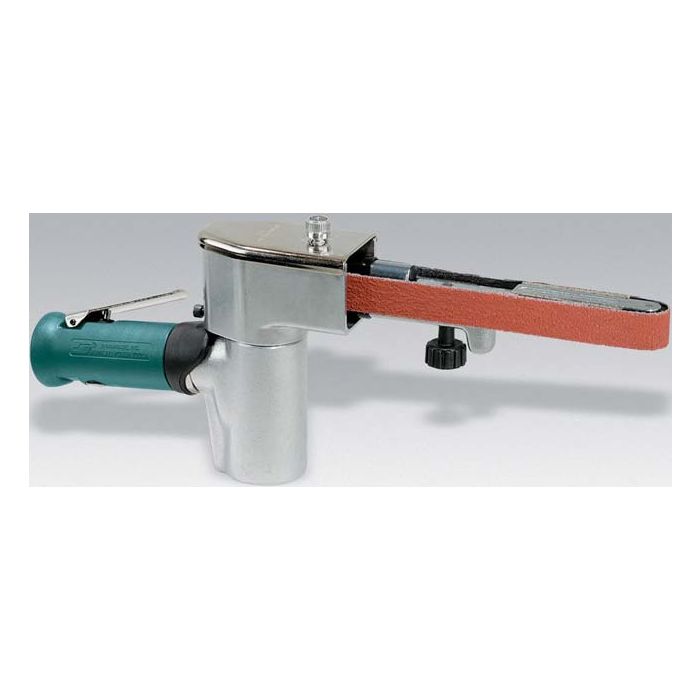

Dynabrade 40320 Dynafile II Abrasive Belt Tool
$688.35
In stock
SKU
DB40320
Dynafile II Abrasive Belt Tool
.5 hp, 7 Degree Offset, 20,000 RPM, Front Exhaust, for 1/4"-3/4" W x 18" L (6-19 mm x 457 mm) Belts
.5 hp, 7 Degree Offset, 20,000 RPM, Front Exhaust, for 1/4"-3/4" W x 18" L (6-19 mm x 457 mm) Belts
Details
- Grind, deburr, blend and polish, on metal, plastic, fiberglass, composites, rubber, glass and more. Grind from contact wheel or platen pad; finish and polish using slack of belt.
- Tool includes 11206 Contact Arm for 3/4" wide x 18" long abrasive belts.
- Lightweight, ergonomic 7 degree offset design. Grinding head pivots 360 degrees for securing in most efficient position.
- Belt guard easily detaches for quick abrasive change; simple belt tracking adjustment knob.
For the Dynabrade section
Click here
| Spec | Value |
|---|---|
| Belt Size Inches (mm) | 1/4-3/4" (6-19) W x 18" (457) L |
| hp (W) | .5 (373) |
| Motor Free Speed (RPM) | 20,000 |
| Max. SFPM (SM/Min.) | 4,550 (1,382) |
| Motor Style | 7 Degree Offset |
| Exhaust Type | Front Exhaust |
| Max. Air Flow @ 90 PSIG (6.2 Bar): SCFM (L/Min.) | 28 (793) |
| Air Inlet Thread | 1/4" NPT |
| Hose I.D. Size Inches (mm) | 3/8" (10) |
| Length Inches (mm) | 14-1/4" (362) |
| Height Inches (mm) | 4-7/8" (124) |
| Sound Level dB(A) |  |
| Vibration Information | |
