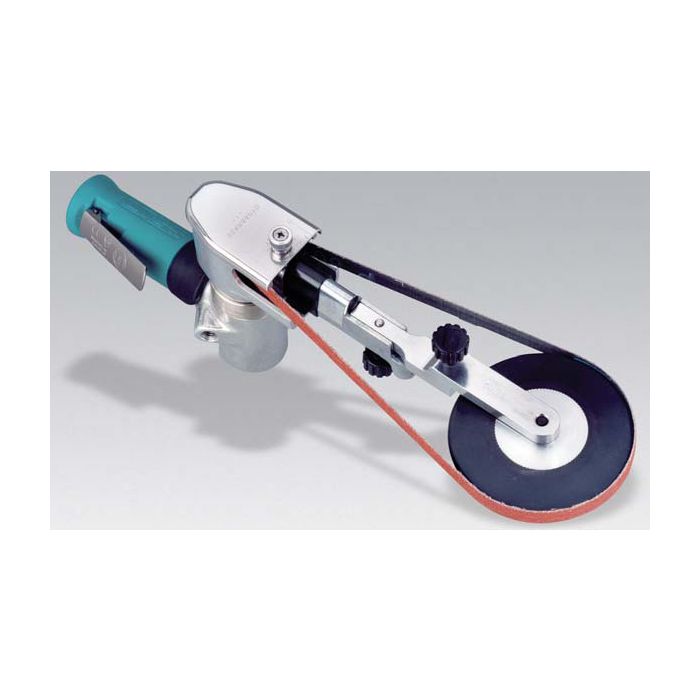

Dynabrade 15420 Dynafile III Abrasive Belt Tool
$816.85
In stock
SKU
DB15420
Dynafile III Abrasive Belt Tool
.7 hp, 7 Degree Offset, 20,000 RPM, Front Exhaust, 1/4", 1/2" W x 24" L (6 mm, 13 mm x 610 mm) Belts
.7 hp, 7 Degree Offset, 20,000 RPM, Front Exhaust, 1/4", 1/2" W x 24" L (6 mm, 13 mm x 610 mm) Belts
Details
- Dynafile III Abrasive Belt Tool offers all the versatility of our world-famous Dynafile II, while serving up more power (.7 hp / 522 W) for faster material removal.
- Includes 11702 Contact Arm with unique 4"diameter wheel, for grinding or blending right angle welds and fillit welds. Contact Arm includes hand guide for additional control. Saves time and reduces costs!
- Grinds corner welds with no undercutting. Tool accepts belts 24" long, in widths of 1/4"or 1/2".
- Tool grinding head pivots 180 degrees.
For the Dynabrade section
Click here
| Spec | Value |
|---|---|
| Belt Size Inches (mm) | 1/4" (6) or 1/2" (13) W x 24" (610) L |
| hp (W) | .7 (522) |
| Motor Free Speed (RPM) | 20,000 |
| Max. SFPM (SM/Min.) | 4,550 (1,382) |
| Motor Style | 7 Degree Offset |
| Exhaust Type | Front Exhaust |
| Max. Air Flow @ 90 PSIG (6.2 Bar): SCFM (L/Min.) | 32 (906) |
| Air Inlet Thread | 1/4" NPT |
| Hose I.D. Size Inches (mm) | 3/8" (10) |
| Length Inches (mm) | 14" (356) |
| Height Inches (mm) | 4-7/8" (124) |
| Sound Level dB(A) |  |
| Vibration Information | |
