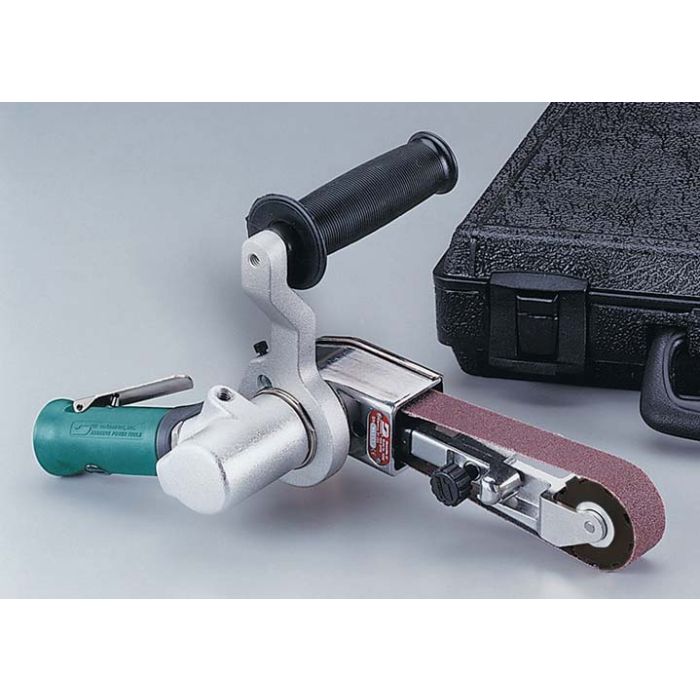

Dynabrade 15300 Dynafile III Abrasive Belt Tool
$759.05
In stock
SKU
DB15300
Dynafile III Abrasive Belt Tool
.7 hp, 7 Degree Offset, 20,000 RPM, Front Exhaust, for 1/4"-1" W x 18" L (6-25 mm x 457 mm) Belts
.7 hp, 7 Degree Offset, 20,000 RPM, Front Exhaust, for 1/4"-1" W x 18" L (6-25 mm x 457 mm) Belts
Details
- Excellent for grinding welds, blending and deburring. Dynafile III Abrasive Belt Tool offers all the versatility of our world-famous Dynafile II, while serving up more power (.7 hp / 522 W) for faster material removal.
- Tool includes high-efficiency Rubber Drive Wheel, ideal for use with all abrasive belts.
- Includes 15350 Contact Arm for 1" wide x 18" long abrasive belts. Tool grinding head pivots 360 degrees.
- Soft grip handle assembly allows operator to apply additional force to contact wheel. Handle also offers enhanced control and maneuverability.
- Optional safety-lock throttle lever is available.
For the Dynabrade section
Click here
| Spec | Value |
|---|---|
| Belt Size Inches (mm) | 1/4-1" (6-25) W x 18" (457) L |
| hp (W) | .7 (522) |
| Motor Free Speed (RPM) | 20,000 |
| Max. SFPM (SM/Min.) | 4,550 (1,382) |
| Motor Style | 7 Degree Offset |
| Exhaust Type | Front Exhaust |
| Max. Air Flow @ 90 PSIG (6.2 Bar): SCFM (L/Min.) | 32 (906) |
| Air Inlet Thread | 1/4" NPT |
| Hose I.D. Size Inches (mm) | 1/4" (6) |
| Length Inches (mm) | 14-1/4" (362) |
| Height Inches (mm) | 4-7/8" (124) |
| Sound Level dB(A) |  |
| Vibration Information | |
