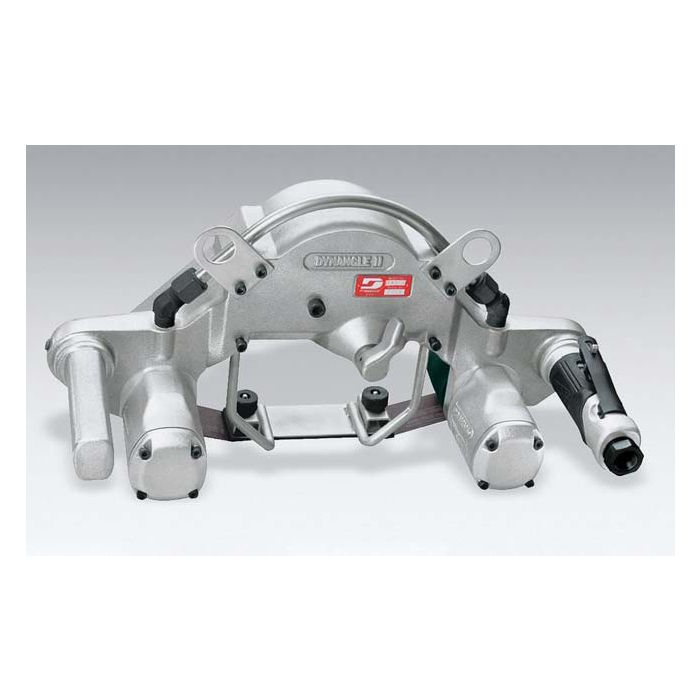

Dynabrade 14306 Dynangle II Abrasive Belt Tool, Dual Motor w/Platen
$3,521.55
In stock
SKU
DB14306
Dynangle II Abrasive Belt Tool, Dual Motor w/Platen
2.4 hp, Straight-Line, 13,000 RPM, Rear Exhaust, for 2" W x 45" L (51 mm x 1143 mm) Belts
2.4 hp, Straight-Line, 13,000 RPM, Rear Exhaust, for 2" W x 45" L (51 mm x 1143 mm) Belts
Details
- Polish, grind contours and flats. Surface conditions stainless steel and most other metals. Also used on wood, plastic, fiberglass and composites. Blends and finishes solder seams. Built-in abrasive belt guard; fast belt change.
- Heavy-Duty 'Dual Motor' with Platen, offers extra power. Uses 2" x 45" belts; belts spans 17" for polishing pipe up to 48" diameter.
- Includes 2" wide x 6" long platen which is easily removed for strap polishing.
For the Dynabrade section
Click here
| Spec | Value |
|---|---|
| Belt Size Inches (mm) | 2" (51) W x 45" (1,143) L |
| hp (W) | 2.0 (1,492) |
| Motor Free Speed (RPM) | 13,000 |
| Max. SFPM (SM/Min.) | 8,500 (2,591) |
| Motor Style | Straight-Line |
| Exhaust Type | Rear Exhaust |
| Max. Air Flow @ 90 PSIG (6.2 Bar): SCFM (L/Min.) | 106 (3,002) |
| Air Inlet Thread | 1/2" NPT |
| Hose I.D. Size Inches (mm) | 1/2" (13) |
| Length Inches (mm) | 22-7/8" (581) |
| Height Inches (mm) | 9-1/2" (241) |
| Sound Level dB(A) |  |
| Vibration Information | |
