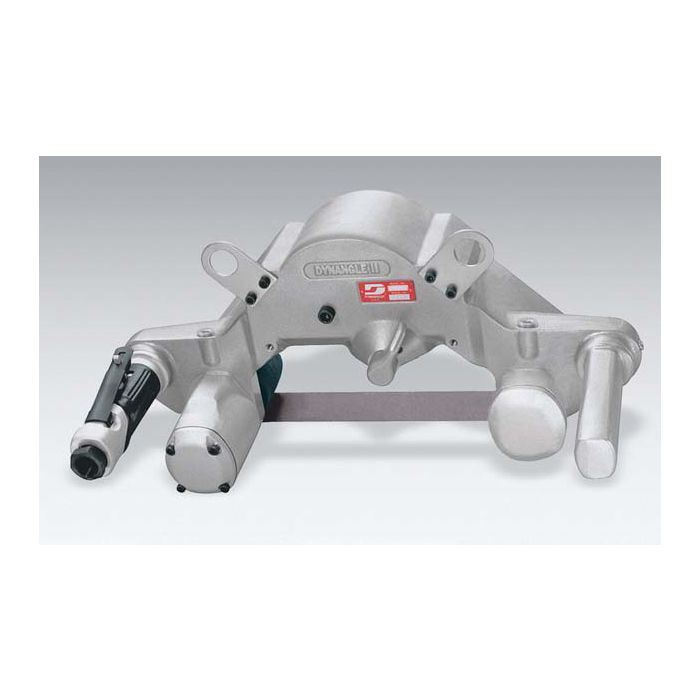

Dynabrade 14300 Dynangle II Abrasive Belt Tool, Single Motor
$1,905.70
In stock
SKU
DB14300
Dynangle II Abrasive Belt Tool, Single Motor
1.2 hp, Straight-Line, 13,000 RPM, Rear Exhaust, for 2" W x 34" L (51 mm x 864 mm) Belts
1.2 hp, Straight-Line, 13,000 RPM, Rear Exhaust, for 2" W x 34" L (51 mm x 864 mm) Belts
Details
- Polish, grind contours and flats. Surface conditions stainless steel and most other metals. Also used on wood, plastic, fiberglass and composites. Blends and finishes solder seams. Built-in abrasive belt guard; fast belt change.
- Single Motor model uses 2" x 34" belts; belts spans 11-1/2" for 'strap polishing' up to 36" diameter pipe.
- 14350 Conversion Kit available to upgrade single motor model to a dual motor model at a later date, if desired.
- Safety-lock lever-throttle; hanger brackets included for optional overhead suspension.
- For grinding with a platen pad, dual motor models are recommended.
For the Dynabrade section
Click here
| Spec | Value |
|---|---|
| Belt Size Inches (mm) | 2" (51) W x 34" (864) L |
| hp (W) | 1.2 (895) |
| Motor Free Speed (RPM) | 13,000 |
| Max. SFPM (SM/Min.) | 8,500 (2,591) |
| Motor Style | Straight-Line |
| Exhaust Type | Rear Exhaust |
| Max. Air Flow @ 90 PSIG (6.2 Bar): SCFM (L/Min.) | 53 (1,501) |
| Air Inlet Thread | 1/2" NPT |
| Hose I.D. Size Inches (mm) | 1/2" (13) |
| Length Inches (mm) | 18-7/8" (479) |
| Height Inches (mm) | 8-1/2" (216) |
| Sound Level dB(A) |  |
| Vibration Information | |
