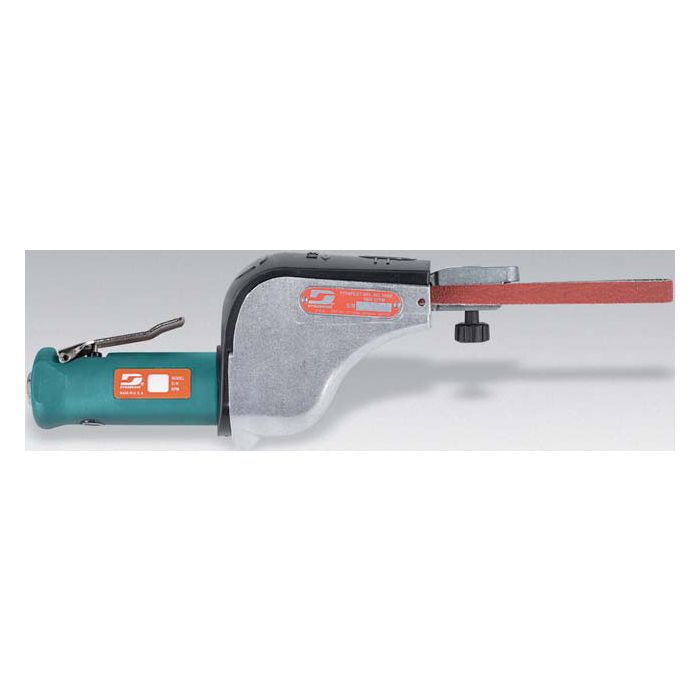

Dynabrade 14000 Dynafile Abrasive Belt Tool
$699.72
In stock
SKU
DB14000
Dynafile Abrasive Belt Tool
.5 hp, Straight-Line, 20,000 RPM, Front Exhaust, for 1/8"-1/2" W x 24" L (3-13 mm x 610 mm) Belts
.5 hp, Straight-Line, 20,000 RPM, Front Exhaust, for 1/8"-1/2" W x 24" L (3-13 mm x 610 mm) Belts
Details
- World-famous Dynafile replaces tedious hand filing and sanding. Grind, deburr, blend, polish, finish and more!
- Grind from contact wheel or platen pad. Finish and polish using slack of belt. For use on metal, plastic, fiberglass, composites, rubber, glass and stone.
- Tool includes 11218 Contact Arm for standard use. Also accepts a variety of additional Contact Arms. Superior belt tracking permits use of abrasive belts 1/8", 1/4" or 1/2" wide x 24" long. Work in areas as small as 3/8" diameter.
- Motor easily adjusts to the most comfortable throttle lever position. Lightweight composite belt guard allows quick and easy belt change!
- Hard and soft platen pads mount onto Contact Arms for heavy grinding or contour polishing.
For the Dynabrade section
Click here
| Spec | Value |
|---|---|
| Belt Size Inches (mm) | 1/8-1/2" (3-13) W x 24" (610) L |
| hp (W) | .5 (373) |
| Motor Free Speed (RPM) | 20,000 |
| Max. SFPM (SM/Min.) | 5,800 (1,762) |
| Motor Style | Straight-Line |
| Exhaust Type | Front Exhaust |
| Max. Air Flow @ 90 PSIG (6.2 Bar): SCFM (L/Min.) | 31 (878) |
| Air Inlet Thread | 1/4" NPT |
| Hose I.D. Size Inches (mm) | 1/4" (6) |
| Length Inches (mm) | 14.6" (371) |
| Height Inches (mm) | 4.6" (116) |
| Sound Level dB(A) |  |
| Vibration Information | |
