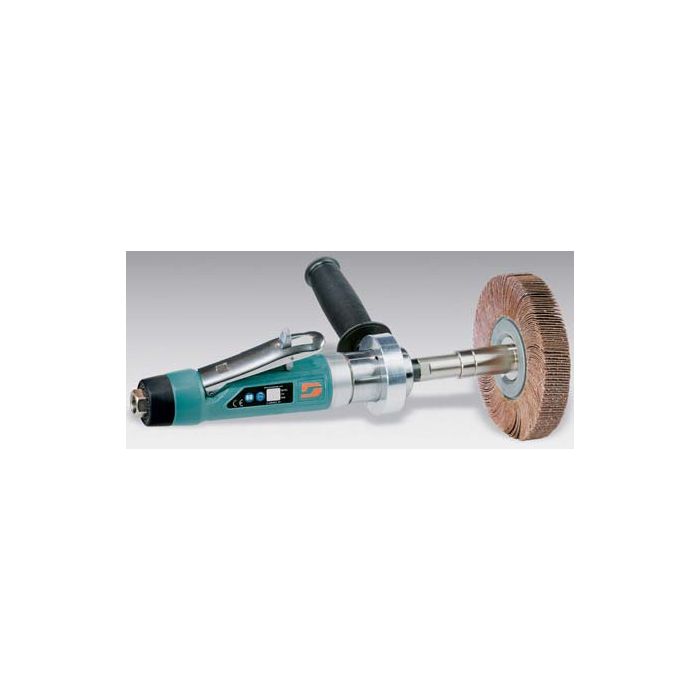

Dynabrade 13509 Dynastraight Finishing Tool
$1,005.55
In stock
SKU
DB13509
Dynastraight Finishing Tool
1 hp, Straight-Line, 6,000 RPM, Rear Exhaust, 5/8" (16 mm) or 1" (25 mm) Dia. Arbor
1 hp, Straight-Line, 6,000 RPM, Rear Exhaust, 5/8" (16 mm) or 1" (25 mm) Dia. Arbor
Details
- Dynastraight Air-Powered Abrasive Finishing Tool for graining, cleaning and polishing on stainless steel, aluminum, carbon steel and composites.
- 6,000 RPM, 1 hp. Tool includes 13071 Combo Arbor, for up to 3" wide wheels with 5/8" or 1" diameter center hole.
- Ideal for use with optional 94507 Dynacushion Pneumatic Wheel (3-1/4" dia. x 3" wide x 5/8" bore).
For the Dynabrade section
Click here
| Spec | Value |
|---|---|
| hp (W) | 1 (744) |
| Motor Free Speed (RPM) | 1,800 |
| Max. Abrasive Dia. Inches (mm) | 8" (203) |
| Wheel Arbor Dia. Inches (mm) | 5/8" (16) or 1" (25) |
| Motor Style | Planetary-Geared |
| Exhaust Type | Rear |
| Max. Air Flow @ 90 PSIG (6.2 Bar): SCFM (L/Min.) | 34 (952) |
| Air Inlet Thread | 3/8" NPT |
| Hose I.D. Size Inches (mm) | 3/8" (10) |
| Length Inches (mm) | 17-1/4" (438) |
| Height Inches (mm) | 1-7/8" (48) |
| Sound Level dB(A) |  |
| Vibration Information | |
