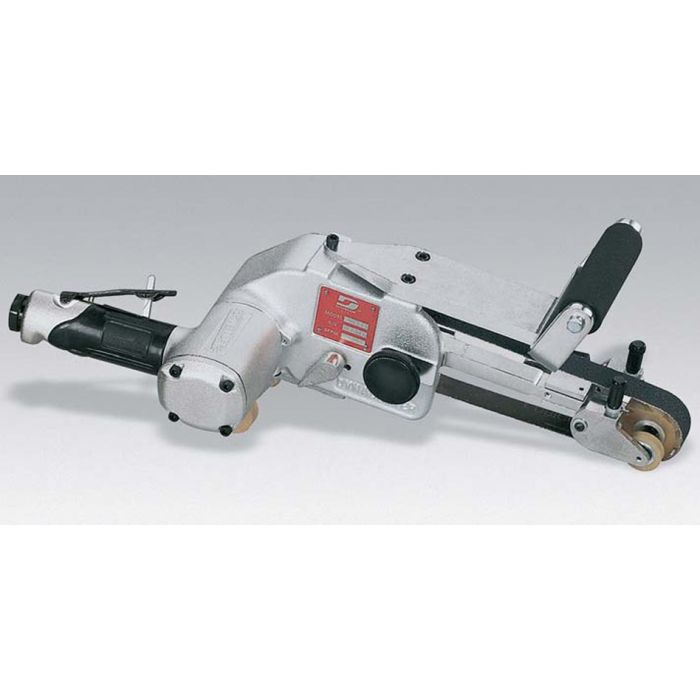

Dynabrade 11486 Dynabelter Accu-Grinder Abrasive Belt Tool, Heavy-Duty
$1,631.15
In stock
SKU
DB11486
Dynabelter Accu-Grinder Abrasive Belt Tool, Heavy-Duty
1.2 hp, Right Angle, 13,000 RPM, Front Exhaust, for 1" W x 30" L (25 mm x 762 mm) Belts
1.2 hp, Right Angle, 13,000 RPM, Front Exhaust, for 1" W x 30" L (25 mm x 762 mm) Belts
Details
- Grinds welds flat, without undercutting. Heavy-Duty, 1.2 hp model efficiently removes excess weld material and leaves narrow 'in-line' scratch pattern. This model takes the guesswork out of weld grinding, and prevents undercutting!
- Adjustable guide tires control the depth of abrasive belt cut. Simple twist-knobs adjust depth of cut. Allows controlled grinding on flats, contours and inside/outside of pipes and tanks.
- Includes 11717 Adjust-A-Wheel Contact Arm with 90-durometer standard serrated Contact Wheel, 2" diameter x 1" wide.
- Work on Longitudinal Welds; I.D; 12" diameter pipe or larger.; O.D; 8" diameter pipe or larger.
For the Dynabrade section
Click here
| Spec | Value |
|---|---|
| Belt Size Inches (mm) | 1" (25) W x 30" (762) L |
| hp (W) | 1.2 (895) |
| Motor Free Speed (RPM) | 13,000 |
| Max. SFPM (SM/Min.) | 4,220 (1,282) |
| Motor Style | Right Angle |
| Exhaust Type | Front Exhaust |
| Max. Air Flow @ 90 PSIG (6.2 Bar): SCFM (L/Min.) | 58 (1,643) |
| Air Inlet Thread | 3/8" NPT |
| Hose I.D. Size Inches (mm) | 1/2" (13) |
| Length Inches (mm) | 22" (559) |
| Height Inches (mm) | 7" (178) |
| Sound Level dB(A) |  |
| Vibration Information | |
