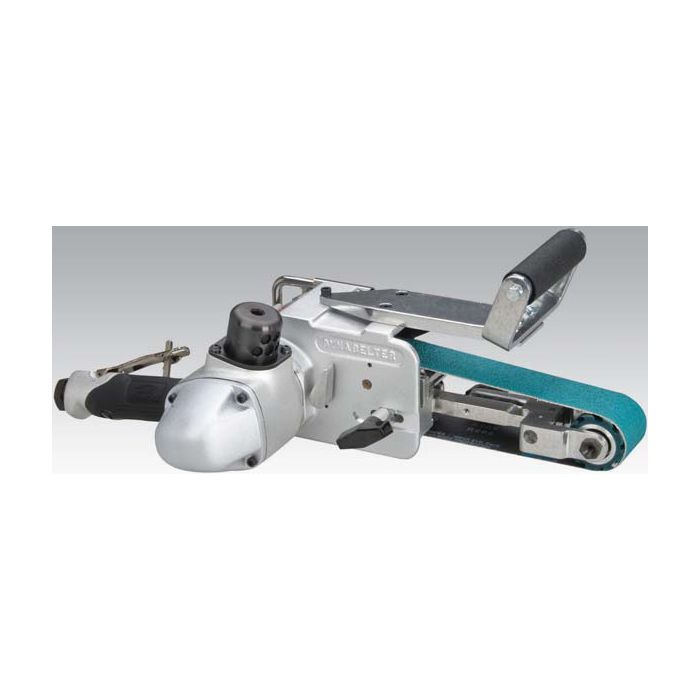

Dynabrade 11477 Dynabelter Abrasive Belt Tool, Extra Heavy-Duty

$2,040.00
In stock
SKU
DB11477
Dynabelter Abrasive Belt Tool, Extra Heavy-Duty

2 hp, Vertical, 7,200 RPM, Front Exhaust, for 1"-2" W x 30" L (25-51 mm x 762 mm) Belts
  • For weld grinding, blending and finishing, on metal and other surfaces. Dynabelter is ideal for work on ferrous and non-ferrous metals, wood, plastic, stone and composites.
  • Uses include grinding cylinders, deburring castings, cleaning welds and fabricating metals. Also excellent for polishing tubing, deburring structural steel, finish-dimensioning on lathe work and blending inside corners. Safety-lock lever throttle included.
  • Extra Heavy-Duty, 2.0 hp model accepts 2" wide x 30" long abrasive belts. Includes pressure bar with top control handle. Includes 11870 Contact Arm Assembly.
  • 11871 Contact Arm with 4" dia. contact wheel is available for 2" wide x 60" long belts, providing a 20" workable reach. Optional 11891 Platen is available for 11871 Arm.
  • Ideal for use with 1/2" Dynaswivel, and 98273 Coupler/Plug Assembly.


For the Dynabrade section Dynabrade Section Click here



SpecValue
Belt Size Inches (mm)1-2" (25-51) W x 30" (762) L
hp (W)2.0 (1,492)
Motor Free Speed (RPM)7,200
Max. SFPM (SM/Min.)4,700 (1,432)
Motor StyleVertical
Exhaust TypeFront Exhaust
Max. Air Flow @ 90 PSIG (6.2 Bar): SCFM (L/Min.)70 (1,982)
Air Inlet Thread1/2" NPT
Hose I.D. Size Inches (mm)1/2" (13)
Length Inches (mm)21-1/2" (546)
Height Inches (mm)7-3/4" (197)
Sound Level dB(A)
Vibration Information
