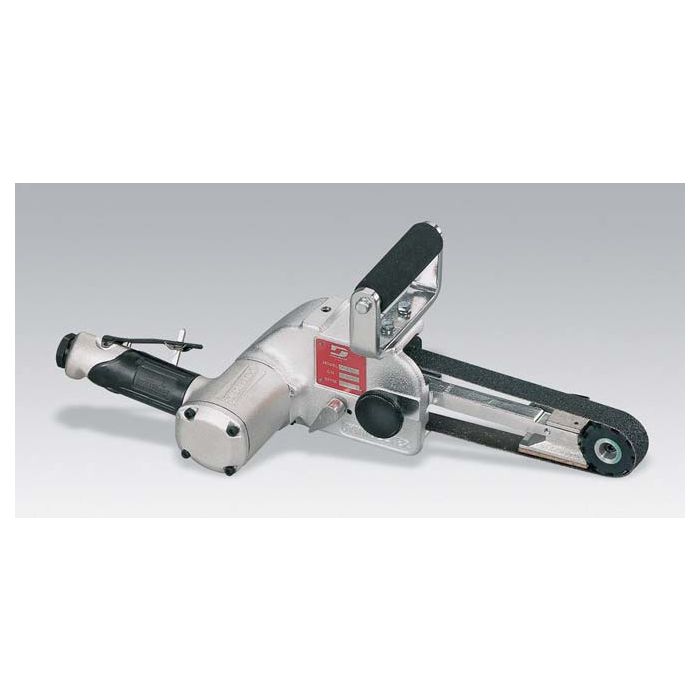

Dynabrade 11476 Dynabelter Abrasive Belt Tool, Heavy-Duty
$1,295.40
In stock
SKU
DB11476
Dynabelter Abrasive Belt Tool, Heavy-Duty
1.2 hp, Right Angle, 13,000 RPM, Front Exhaust, for 1/4"-1" W x 30" L (6-25 mm x 762 mm) Belts
1.2 hp, Right Angle, 13,000 RPM, Front Exhaust, for 1/4"-1" W x 30" L (6-25 mm x 762 mm) Belts
Details
- For weld grinding, blending and finishing, on metal and other surfaces. Dynabelter is ideal for work on ferrous and non-ferrous metals, wood, plastic, stone and composites.
- Uses include grinding cylinders, deburring castings, cleaning welds and fabricating metals. Also excellent for polishing tubing, deburring structural steel, finish-dimensioning on lathe work and blending inside corners. Safety-lock lever throttle included.
- Heavy-Duty, 1.2 hp model accepts 1" wide x 30" long abrasive belts.
- Includes 11681 Contact Arm Assembly, and top control handle.
- Ideal for use with 3/8" Dynaswivel, and 98265 Coupler/Plug Assembly.
For the Dynabrade section
Click here
| Spec | Value |
|---|---|
| Belt Size Inches (mm) | 1/4-1" (6-25) W x 30" (762) L |
| hp (W) | 1.2 (895) |
| Motor Free Speed (RPM) | 13,000 |
| Max. SFPM (SM/Min.) | 4,250 (1,295) |
| Motor Style | Right Angle |
| Exhaust Type | Front Exhaust |
| Max. Air Flow @ 90 PSIG (6.2 Bar): SCFM (L/Min.) | 58 (1,643) |
| Air Inlet Thread | 3/8" NPT |
| Hose I.D. Size Inches (mm) | 1/2" (13) |
| Length Inches (mm) | 21" (533) |
| Height Inches (mm) | 7-1/4" (184) |
| Sound Level dB(A) |  |
| Vibration Information | |
