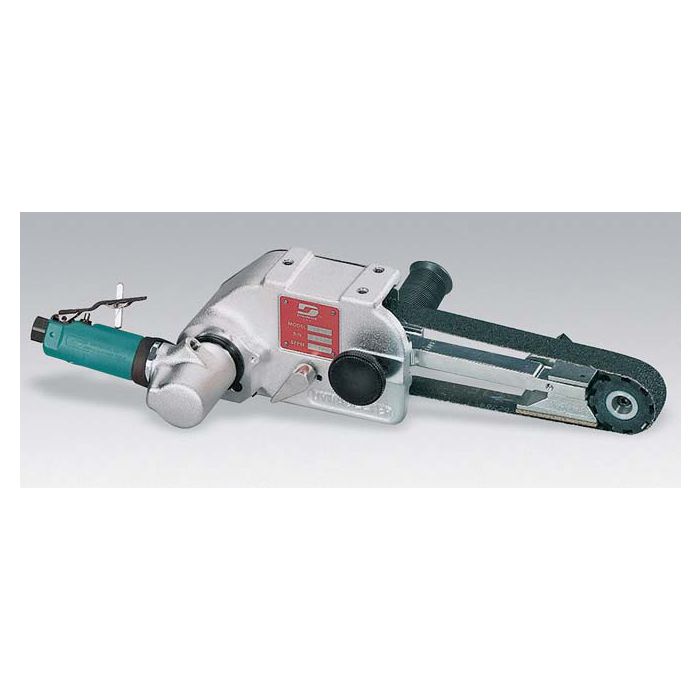

Dynabrade 11475 Dynabelter Abrasive Belt Tool, Standard Duty
$1,448.42
In stock
SKU
DB11475
Dynabelter Abrasive Belt Tool, Standard Duty
.7 hp, 7 Degree Offset, 18,000 RPM, Front Exhaust, for 1/4"-1" W x 30" L (6-25 mm x 762 mm) Belts
.7 hp, 7 Degree Offset, 18,000 RPM, Front Exhaust, for 1/4"-1" W x 30" L (6-25 mm x 762 mm) Belts
Details
- For weld grinding, blending and finishing, on metal and other surfaces. Dynabelter is ideal for work on ferrous and non-ferrous metals, wood, plastic, stone and composites.
- Uses include grinding cylinders, deburring castings, cleaning welds and fabricating metals. Also excellent for polishing tubing, deburring structural steel, finish-dimensioning on lathe work and blending inside corners. Safety-lock lever throttle included.
- Standard Duty, .7 hp model accepts 1" wide x 30" long abrasive belts. Adjustable speed; removable side handle.
- Includes 11681 Contact Arm Assembly.
- Ideal for use with 1/4" Dynaswivel , and 95676 Coupler/Plug Assembly.
For the Dynabrade section
Click here
| Spec | Value |
|---|---|
| Belt Size Inches (mm) | 1/4-1" (6-25) W x 30" (762) L |
| hp (W) | .7 (522) |
| Motor Free Speed (RPM) | 18,000 |
| Max. SFPM (SM/Min.) | 5,890 (1,789) |
| Motor Style | 7 Degree Offset |
| Exhaust Type | Front Exhaust |
| Max. Air Flow @ 90 PSIG (6.2 Bar): SCFM (L/Min.) | 32 (906) |
| Air Inlet Thread | 1/4" NPT |
| Hose I.D. Size Inches (mm) | 1/2" (13) |
| Length Inches (mm) | 21" (533) |
| Height Inches (mm) | 7-1/4" (184) |
| Sound Level dB(A) |  |
| Vibration Information | |
