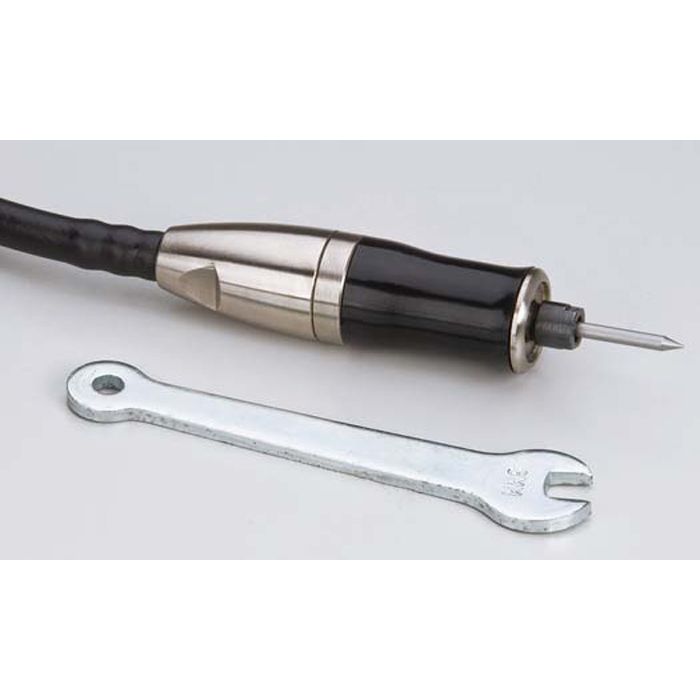

Dynabrade 10846 DynaPen Reciprocating Tool Scribe Kit, 1/8" Collet

• DynaPen with Scribe Point easily engraves metal, wood, stone, glass and composites. Ideal for use in aerospace accounts and maintenance departments, where parts are engraved for identification and tracking. Scribe Point made of high-carbon steel, heat-treated and tempered to hardness of 62 Rockwell.
• Kit Includes: 10843 DynaPen with 51659 Collet Insert (1/8"); 90990 Scribe Point (1/8") – High-Carbon Steel; 95731 Wrench
• Only one wrench required; easier to change files; Easy grip rubber sleeve.
• Lubrication is not recommended during operation. Lubrication is ONLY recommended during storage.

For the Dynabrade section Click here

Spec	Value
Collet Insert Size	1/8"
SPM	14,000
Stroke Length Inches (mm)	.007" (.18)
Exhaust Type	Front
Max. Air Flow @ 90 PSIG (6.2 Bar): SCFM (L/Min.)	4 (113)
Air Inlet Thread	1/4" NPT
Hose I.D. Size Inches (mm)	1/4" (6)
Length Inches (mm)	3-1/8" (80)
Height Inches (mm)	15/16" (23)
Sound Level dB(A)
Vibration Information
Configuration	Straight-Line
Power Transmission	Piston Driven
