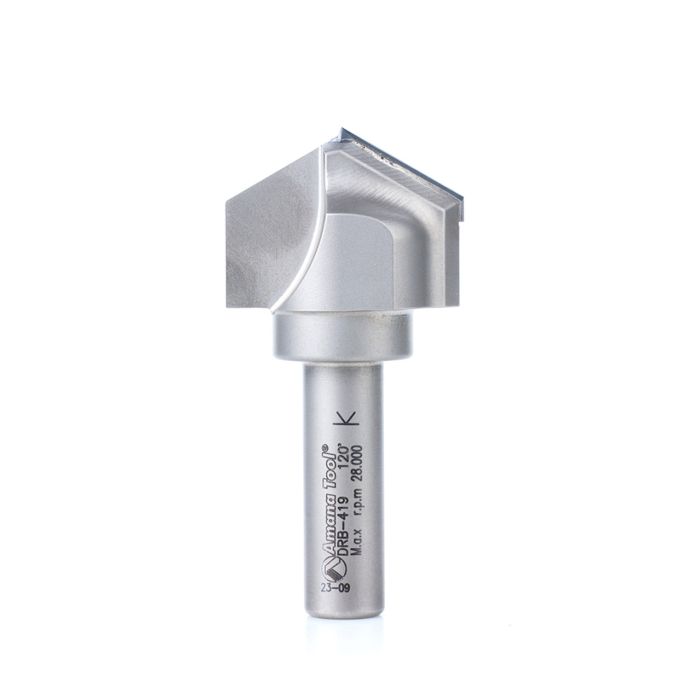

Amana tool DRB-419 Polycrystaline Diamond (PCD) Tipped 120 Deg V Engraving/Chamfering 1-1/2 Dia x 0.43 Inch Cut Height x 1/2 Shank Router Bit

PCD Tipped Solid Carbide Tool Body • Single and 2-Flute Router Bits Cut tough, abrasive materials with ease and enjoy longer tool life! Diamond is the hardest material on the earth. Polycrystalline Diamond (PCD) tooling is manufactured in a high-temperature and high-pressure laboratory that fuses diamond particles onto a carbide substrate, which allows the diamond to be brazed onto a tool body. PCD Tooling Benefits: Harder cutting edge provides higher resistance to wear Cut thousands of feet more than carbide without changing tool, saving setup time Optimized machine tool efficiency Quality of finish is often significantly improved If you’re looking for the ultimate in tooling, you’ve found it! Amana Tool's PCD tipped 60° Engraving, V-Groove and Chamfering CNC router bits will engrave, groove and chamfer a wide variety of tough, abrasive materials including Carbon Fiber, Aluminum, MDF (both raw or with melamine), Plywood Veneer and hardwoods. The cutting edge lasts much longer than carbide for extremely long life. Excellent for 'V' Grooving and Chamfering: Aluminum Composite Material (ACM) Carbon Fiber Composite Materials Hard Wood Laminated Chipboard and MDF Plywood Veneer Soft Wood Solid Surface Synthetic and Homogenous Marble Excellent for Engraving: Aluminum Composite Material (ACM) Aluminum, Brass & Copper Aluminum Composites Carbon Fiber Coroplast* Composite Materials Hard Wood HDPE King Starboard / Marine Building Material Laminated Chipboard and MDF Metal Alloys that don't contain Iron PCB Board Phenolic Plastics Plywood Veneer Soft Wood Solid Surface Synthetic and Homogenous Marble Titanium Warning: Maximum recommended material depth in one pass varies from 0.5mm - 3.0mm depending on the hardness of the material. The harder the material the less the depth. *Coroplast is soft plastic cardboard made with super soft, super flexible PVC.
