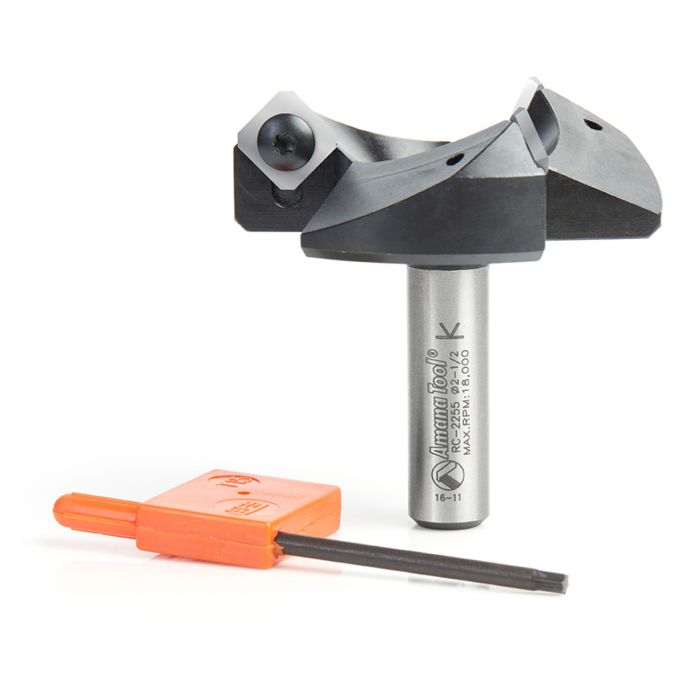

Amana RC-2255 CNC Insert Carbide 3 Wing Heavy Duty Spoilboard Plunging, Surfacing, Planing , Flycutter & Slab Leveler 2 Dia x 53/64 x 1/2 Shank Router Bit

$150.66
In stock
SKU
AMRC-2255

RC-2255 CNC Insert Carbide 3 Wing Heavy Duty Spoilboard Plunging, Surfacing, Planing , Flycutter & Slab Leveler 2 Dia x 53/64 x 1/2 Shank Router Bit

For the Amana section click here Amana Section

Insert carbide spoilboard surfacing & chamfering router bit great for cutting large surface areas and surface planing. Higher number of teeth allows for higher feed rate.
Perfect for:

Resurfacing spoilboards using CNC
Planing large glued up panels using CNC
Surfacing and finishing wood using timber slab machines
Rabbeting or slotting


Designed for planing & chamfering the following materials:

MDF
Fiberboard
HDF/LDF


Balsa Core*
High Density Urethane (HDU Board)*
Plastic/Acrylic*
Plywood/Chipboard*
Solidwood/Softwood*
Ultra-High-Molecular-Weight Polyethylene (UHMWPE)*



*For optimal results and maximum insert life, replace inserts with optional general purpose knives #RCK-457 (sold separately).




Featuring:

4-sided solid carbide insert knives
Exclusive carbide grade for highest quality of cut
Maximum cutting efficiency
Faster material removal process
Tool can plunge up to a maximum depth of 6mm (1/4"), then start resurfacing
Tool capable of removing very thin layers of material, less than 0.001" per pass
The unique chamfer corner insert design, creates a flawless surface.
The 3 wing design, resulting in a more balanced tool while running.


These industrial router bits feature solid carbide insert knives with four cutting edges that allow users to rotate the knife when one side becomes dull providing the highest-quality finish available on woodworking tools.
Proper torques rating to tighten down screws is 2-3Nm Torques.
More Information
(d1) 5/64
Number of Flutes 3
Overall Length(L) 2-19/32
Maximum RPM 18000
