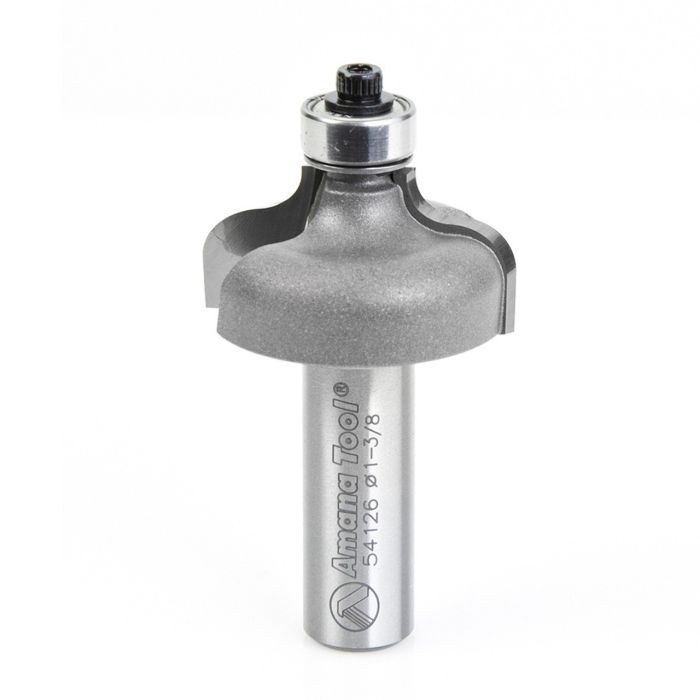

Amana tool 54126 Carbide Tipped Ogee 1/4 x 3/16 R x 1-3/8 D x 11/16 CH x 1/4 Inch SHK w/ Lower Bal Bearing Router Bit

Amana tool 54126 Carbide Tipped Ogee 1/4 x 3/16 R x 1-3/8 D x 11/16 CH x 1/4 Inch SHK w/ Lower Bal Bearing Router Bit

Name: Amana tool 54126 Carbide Tipped Ogee 1/4 x 3/16 R x 1-3/8 D x 11/16 CH x 1/4 Inch SHK w/ Lower Bal Bearing Router Bit
Brand: Amana
Price: 66.75 USD
Availability: InStock

Be the first to review this product

$66.75

In stock

SKU

AM54126

Buy 2 for $63.41 each and save 5%
Buy 5 for $62.08 each and save 7%
Buy 10 for $60.08 each and save 10%
Buy 20 for $56.74 each and save 15%

54126 Carbide Tipped Ogee 1/4 x 3/16 Radius x 1-3/8 Dia x 11/16 x 1/4 Inch Shank

For the Amana section click here

Details

The ogee is one of the basic shapes used in moldings and decorative profiles. An S-shaped curve, it is convex at the top fairing down into a concave (shown inverted). The ogee bit is characterized by the concave shape coming off the pilot bearing. Using the optional 3/8" bearing produces a profile with a fillet at the convex end of the curve. Use in handheld or table-mounted router.

More Information

More Information
(R1)	3/16
(R)	1/4
Number of Flutes	2
Overall Length(L)	2-5/8
Shank Diameter(d)	1/2
Length of Cutting Edge(B)	11/16
Cutting Edge Diameter(D)	1-3/8
Material Being Cut	Hard Wood, Hard Plywood, Soft Plywood
