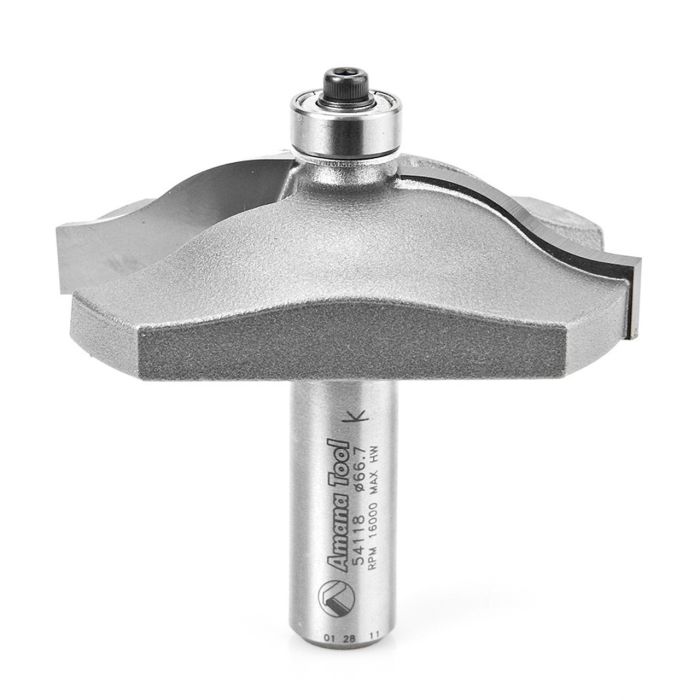

Amana tool 54118 Carbide Tipped Ogee Raised Panel 3/4 R x 2-5/8 D x 5/8 CH x 1/2 Inch SHK Router Bit

Create raised panels for cabinet doors, frame-and-panel furniture, and architectural paneling with a raised-panel bit. The cutter forms a fillet to delineate the raised field, a shaped band around the field, and an integral tongue to fit the panel groove in the frame members. The profile contour and the reveal width varies. All tools have 1/2" shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Use these bits for panels with curved edges. Multiple passes recommended. Watch now! How to make Raised Panel Doors Amana Tool Building a Raised Panel Cabinet Door ?WARNING! For Your Safety 1. The methods illustrated here are only intended for use with a table mounted router. 2. Do not exceed the recommended RPM for each of the bits. 3. Use a miter gauge and clamp when routing the ends of the rails. 4. Use a push block or push stick when routing the door styles. 5. Use a guard at all times. 6. Use eye and hearing protection. 7. Do not use the methods in this set of instructions unless you feel that they are safe for you. Router Bits shown in video Stile & Rail Router Bits Reversible Stile & Rail Assembly - #55350 2pc Concave Stile & Rail - #55420 & #55421 Raised Panel Router Bits Ogee Raised Panel - #54118 Ogee Raised Panel w/Back Cutter - #54221
