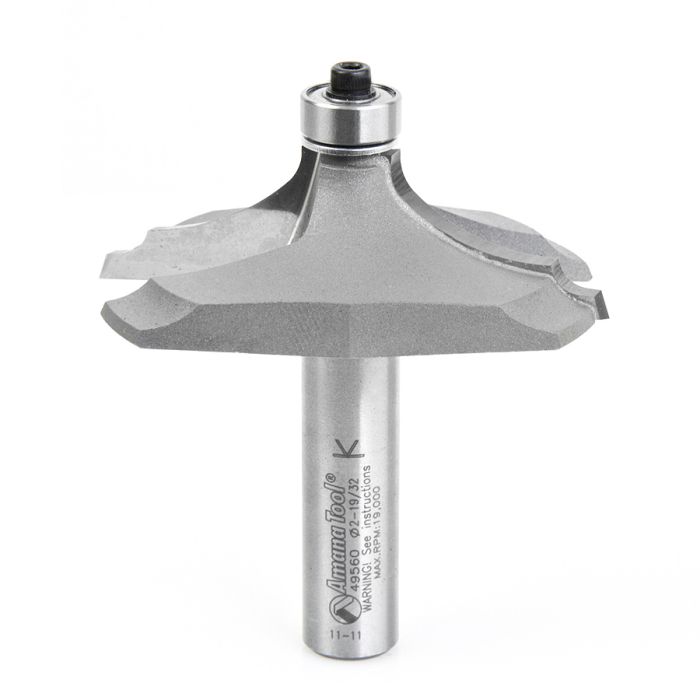

Amana 49560 Carbide Tipped Table Edge -Thumbnail & Bead 11/64 x 1-3/32 Radius x 2-9/16 Dia x 3/4 x 1/2 Inch Shank
$120.38
In stock
SKU
AM49560
- Buy 2 for $114.36 each and save 5%
- Buy 5 for $111.95 each and save 7%
- Buy 10 for $108.34 each and save 10%
- Buy 20 for $102.32 each and save 15%
49560 Carbide Tipped Table Edge -Thumbnail & Bead 11/64 x 1-3/32 Radius x 2-9/16 Dia x 3/4 x 1/2 Inch Shank
Details
Cuts a shallow ogee into the tabletop surface coupled with a bead at the edge. Bit will produce a fillet if set to cut deep enough. With the optional 3/8" bearing, it will produce a fillet at the cut's edge. Good choice for handrails.
These special router bits are used for cutting table top edges or used with handrail side profile bits. Originally designed for easing and profiling the edges of tabletops, these bits also are widely used for the same purpose on handrails. See also handrail patterns. Eliminate hard edges, reduce the visual thickness of a tabletop, and add an elegant detail simultaneously with these bits.
Maximum RPM 16,000.
Optional 3/8" bearing #47702 (order separately).
These special router bits are used for cutting table top edges or used with handrail side profile bits. Originally designed for easing and profiling the edges of tabletops, these bits also are widely used for the same purpose on handrails. See also handrail patterns. Eliminate hard edges, reduce the visual thickness of a tabletop, and add an elegant detail simultaneously with these bits.
Maximum RPM 16,000.
Optional 3/8" bearing #47702 (order separately).
More Information
| (R1) | 1-3/32 |
|---|---|
| (R) | 11/64 |
| Number of Flutes | 2 |
| Overall Length(L) | 2-3/4 |
| Shank Diameter(d) | 1/2 |
| Length of Cutting Edge(B) | 3/4 |
| Cutting Edge Diameter(D) | 2-9/16 |
| info | 47706 |
