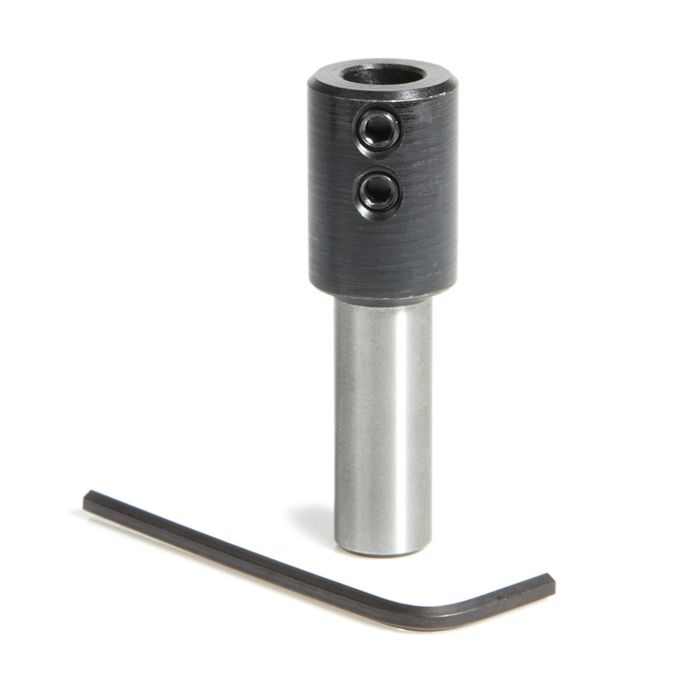

Amana 47638 10mm Shank Dowel Drill/Boring Bit Adapter for CNC Standard Collet/Tool Holder

$22.35
In stock
SKU
AM47638

47638 10mm Shank Dowel Drill/Boring Bit Adapter for CNC Standard Collet/Tool Holder

For the Amana section click here Amana Section

Made especially to run 10mm shank dowel drills and boring bits on a CNC machine. Accommodates the flat area on the 10mm round drill bit shank, secure with the 2 set screws (M6), same method as on boring machines.
Total Indicated Run-out (TIR) is 0.00118" (0.03mm)
Note: When securing drill bit into the adapter, make sure to align the flat part of the shank with both set screws.
Warning: Max RPM = 10,000
More Information
Drill Diameter 3/4
Drill Shank Diameter 1/2
Overall Length(L) 2-7/16
info D1: 10mm
