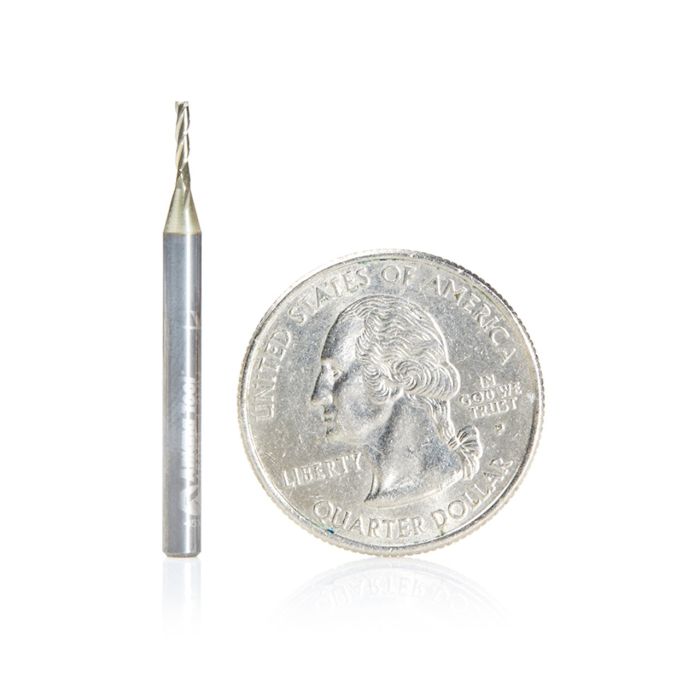

Amana tool 46093 Solid Carbide Spiral 1.2mm Dia x 5mm Cut Height x 1/8 Inch Shank x 35mm Long Composite, Fiberglass & Phenolic Cutting ZrN Coated 3 Flute Up-Cut Router Bit

Amana Tool’s Modern Materials Finishing Geometry (MMFG) incorporates high shear, multi-fluting and Zirconium Nitride (ZrN) coating designed for the ultimate combination of finish and tool longevity in aerospace materials. Modern-day materials present challenges to the fabricator, using Amana Tool’s special, multi-flute edge tool featuring ZrN ceramic coating, addresses these challenges with a winning geometry combination. Excellent for cutting: PlasticAcrylic StoneAluminumAcrylonitrile-Butadiene-Styrene (ABS)Carbon Fiber Reinforced Polymer (CFRP)Coroplast*CorianFiberglassFiberglass PCB BoardHDPEHigh Impact Polystyrene (HIPS)Polycarbonate (Lexan™)Low Density Polyethylene (LDPE)PhenolicsPoly (methyl methacrylate) (PMMA)Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)Thermoplastic Polyolefin (TPO)*Coroplast is soft plastic cardboard made with super soft, super flexible PVC.Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™Benefits of ZrN Coating Zirconium Nitride (ZrN) coated bits have the ability to run and/or be spun much faster than an uncoated tools.ZrN coating creates a harder and tougher cutting ceramic over carbide edge, allowing for a prolonged cutting edge life and helps to prevent the build-up/galling of material in the flutes while cutting.High flute volume supports high feed rates and chip loadsHigh aspect ratio for single pass deep-reach cuttingCreates incredibly precise detail workMirror finish polished flute, up-spiral cutting edge for superior chip ejectionFlute geometry optimized for cutting sign foam, sign board, hardwoods, thermoplastics and phenolic compositesOptimized flute geometry and low Total Indicated Runout (TIR) guarantees clean cuts, essentially eliminates sanding and reduces chatter (where the machine or work piece vibrates) under high chip loads when used with low TIR spindles.
