Amana 45850 Carbide Tipped Dovetail 14 Deg x 1/2 Dia x 1/2 x 1/4 Inch Shank with Upper BB

Availability: In stock

Items ordered before 2pm CST ship today

$30.34


OR

Quick Overview

14 Degree Dovetail Router Bits with Upper Ball Bearing

Calculate Shipping Price

Amana 45850 Carbide Tipped Dovetail 14 Deg x 1/2 Dia x 1/2 x 1/4 Inch Shank with Upper BB

Details

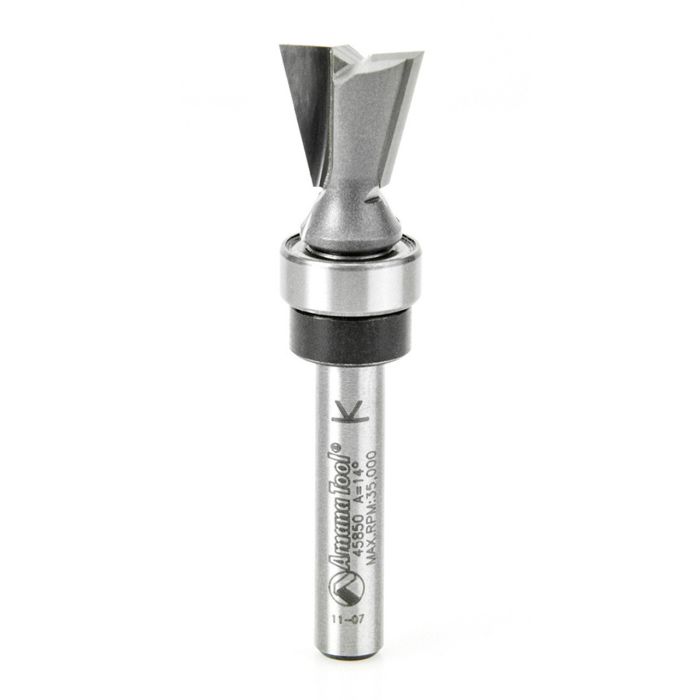

This dovetail bit has a shank-mounted ball bearing guide for routing dovetail slots following a template and pattern routing. The template must be mounted between the workpiece and the router. With a handheld router, the template must be on top of the workpiece. With a table-mounted router, the template must be underneath the workpiece.

Additional Information

14°
Number of Flutes 2
Overall Length(L) 2-1/4"
Shank Diameter(d) 1/4"
Length of Cutting Edge(B) 1/2"
Cutting Edge Diameter(D) 1/2"
